We're so happy to have joined the What's Best Forum community!
Below you'll find a little information about myself, Songer Audio, and of course the 100% handcrafted field coil loudspeakers that we make in Portland, Oregon.
About Songer Audio
Songer Audio is the product of my lifelong passion. It is the sum of thousands of hours of design and redesign, of refinement and production, and of an obsessive drive to perfect the joyful experience of music. My background is in software engineering, where I had a successful 20-plus year long career. While I owe much to the software industry, programming was rarely more than a means to a paycheck for me, rather than something I've loved to do. I've always been an artist at heart, and whether I've been drawing, sculpting, painting - or, most recently, designing and building drivers and loudspeakers - creating art has been my true calling.

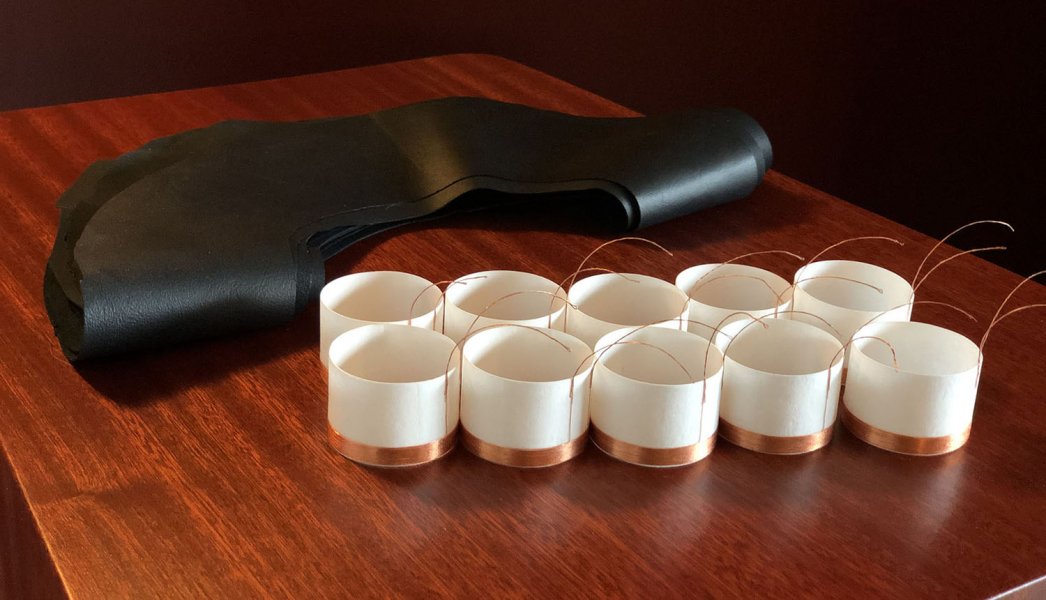

I have been occasionally designing and building speaker cabinets with factory drivers since my college days. At a point however, I began to wonder if I could produce the drivers for my speakers as well. That curiosity led to a nearly decade-long, obsessive exploration into field coil driver design, and the result of that work is what I believe to be one of the finest full-range drivers in the world. It is a work of art, and everything from its brass and aluminum frame, to the cones and voice coils, the suspension, the surrounds, the motors - is all constructed and assembled in my small shop in Portland, Oregon.

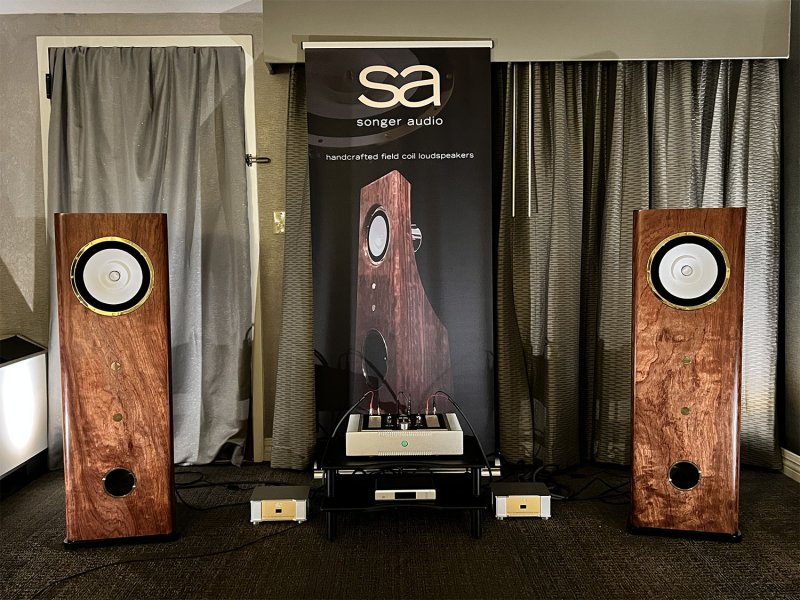

This year has been an exciting debut for us. We exhibited both the S1 and S2 at the Pacific Audio Fest in July, and most recently at the Capital Audiofest in DC, to overwhelmingly positive responses from press and attendees at both events. At the Pacific Audio Fest, we were honored with a coveted Oasis Award by Dr. David Robinson of Positive Feedback, for the S2. The S1 captivated press members with another major publication at the Capital Audiofest just last month, and in a few weeks we will be shipping a pair to them for a full review. More details on that will be coming soon.
A Modern Field Coil Driver
Field coils have been around for over 150 years, and were all but replaced entirely with plentiful and inexpensive permanent magnets in the 1950s. However in spite of being expensive and labor intensive to make, field coils are the superior magnet for sound reproduction. They provide a constant highly uniform gap density, and a magnetic stiffness that is hundreds if not thousands of times higher than a permanent magnet.
That uniformity and stiffness translates into very high accuracy and low distortion, better in both respects than permanent magnets are capable of. They are also adjustable. Varying the power supplied to the field coil changes the Thiele Small parameters of the driver, and as a result tunes the character of its sound.

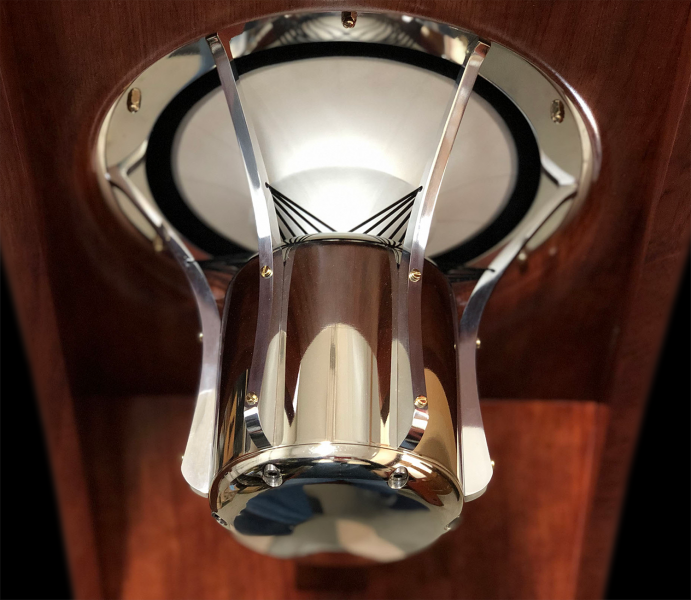

The patented spider design holds the voice coil in tension with a flexible, acoustically transparent lattice and a carbon fiber composite collar, ensuring accurate, linear cone motion and no unnecessary resistances to the music signal whatsoever. The Type D dipole version of our driver takes advantage of the acoustically transparent spider to include a rear-firing whizzer, the only one of its kind in the world. This provides phase coherent presentation across the full frequency range in both the front and rear of the driver.
The S1 and S2 Loudspeakers
The S1 loudspeaker minimally compensates for natural cabinet diffraction, and nothing else. The signal isn't needlessly degraded, as no filters or crossover circuitry are necessary. It simply holds the driver at ear level, where it plays with perfect phase and timing, free of coloration, and port tuned for deep, accurate bass.

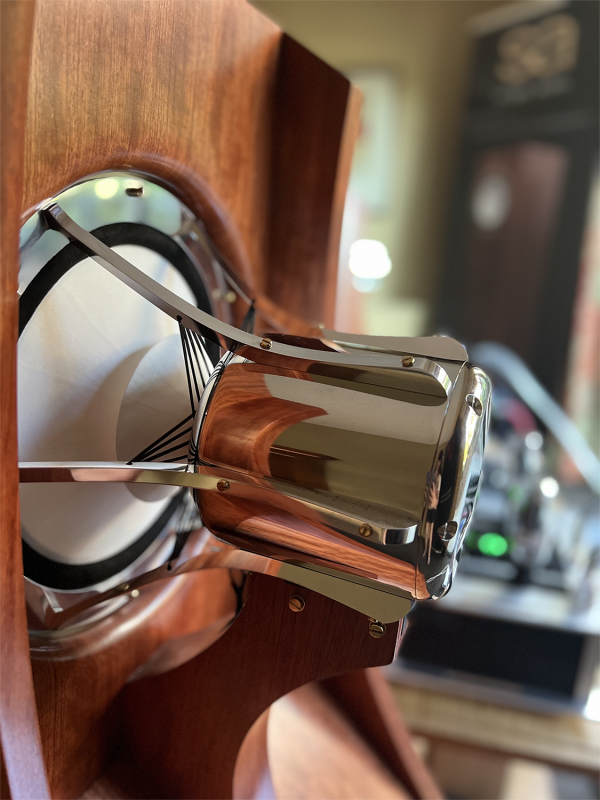

The S2 is a product of years of intensive development. It suspends the Type D field coil driver almost wholly in free space, attached at a single point to a layer-constrained, high mass, hardwood and glass-filled nylon mount for excellent imaging and clarity. Its Acoustic Elegance LO15 dipole woofer is "port constrained" on the front side to lower resonant frequency and raise efficiency. The baffle is folded into a discrete, open chamber in the back, which greatly reduces sound wave cancellations common in dipole applications, and delivers full and yet unmistakably dipole bass response.
Thanks to everyone at WBF, for making us feel so welcome! I'm looking forward to sharing much more over the coming year. Cheers, everyone.
Below you'll find a little information about myself, Songer Audio, and of course the 100% handcrafted field coil loudspeakers that we make in Portland, Oregon.
About Songer Audio
Songer Audio is the product of my lifelong passion. It is the sum of thousands of hours of design and redesign, of refinement and production, and of an obsessive drive to perfect the joyful experience of music. My background is in software engineering, where I had a successful 20-plus year long career. While I owe much to the software industry, programming was rarely more than a means to a paycheck for me, rather than something I've loved to do. I've always been an artist at heart, and whether I've been drawing, sculpting, painting - or, most recently, designing and building drivers and loudspeakers - creating art has been my true calling.
I have been occasionally designing and building speaker cabinets with factory drivers since my college days. At a point however, I began to wonder if I could produce the drivers for my speakers as well. That curiosity led to a nearly decade-long, obsessive exploration into field coil driver design, and the result of that work is what I believe to be one of the finest full-range drivers in the world. It is a work of art, and everything from its brass and aluminum frame, to the cones and voice coils, the suspension, the surrounds, the motors - is all constructed and assembled in my small shop in Portland, Oregon.
This year has been an exciting debut for us. We exhibited both the S1 and S2 at the Pacific Audio Fest in July, and most recently at the Capital Audiofest in DC, to overwhelmingly positive responses from press and attendees at both events. At the Pacific Audio Fest, we were honored with a coveted Oasis Award by Dr. David Robinson of Positive Feedback, for the S2. The S1 captivated press members with another major publication at the Capital Audiofest just last month, and in a few weeks we will be shipping a pair to them for a full review. More details on that will be coming soon.
A Modern Field Coil Driver
Field coils have been around for over 150 years, and were all but replaced entirely with plentiful and inexpensive permanent magnets in the 1950s. However in spite of being expensive and labor intensive to make, field coils are the superior magnet for sound reproduction. They provide a constant highly uniform gap density, and a magnetic stiffness that is hundreds if not thousands of times higher than a permanent magnet.
That uniformity and stiffness translates into very high accuracy and low distortion, better in both respects than permanent magnets are capable of. They are also adjustable. Varying the power supplied to the field coil changes the Thiele Small parameters of the driver, and as a result tunes the character of its sound.
The patented spider design holds the voice coil in tension with a flexible, acoustically transparent lattice and a carbon fiber composite collar, ensuring accurate, linear cone motion and no unnecessary resistances to the music signal whatsoever. The Type D dipole version of our driver takes advantage of the acoustically transparent spider to include a rear-firing whizzer, the only one of its kind in the world. This provides phase coherent presentation across the full frequency range in both the front and rear of the driver.
The S1 and S2 Loudspeakers
The S1 loudspeaker minimally compensates for natural cabinet diffraction, and nothing else. The signal isn't needlessly degraded, as no filters or crossover circuitry are necessary. It simply holds the driver at ear level, where it plays with perfect phase and timing, free of coloration, and port tuned for deep, accurate bass.
The S2 is a product of years of intensive development. It suspends the Type D field coil driver almost wholly in free space, attached at a single point to a layer-constrained, high mass, hardwood and glass-filled nylon mount for excellent imaging and clarity. Its Acoustic Elegance LO15 dipole woofer is "port constrained" on the front side to lower resonant frequency and raise efficiency. The baffle is folded into a discrete, open chamber in the back, which greatly reduces sound wave cancellations common in dipole applications, and delivers full and yet unmistakably dipole bass response.
Thanks to everyone at WBF, for making us feel so welcome! I'm looking forward to sharing much more over the coming year. Cheers, everyone.
