Laser alignment

awsmone

Well-Known Member
Apr 6, 2014
1,616
513
435
Canberra Australia

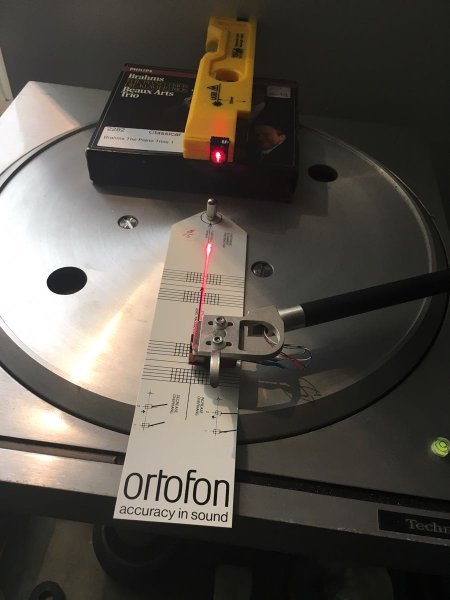

Thought this might be interesting
RenderedContent-3E057CD7-F6DD-4CA0-9A3C-113E611F2692.JPG RenderedContent-4878DF5E-2C2E-40B9-ACC4-EE38A1BDABED.JPG RenderedContent-4669168A-6502-4B9F-9198-FA17E75BEDB8.JPG RenderedContent-20A5895B-F0CD-438F-A5FD-EA784EB4ECEC.JPG


awsmone

Well-Known Member
Apr 6, 2014
1,616
513
435
Canberra Australia
I am always amazed how much alignement improves the sound


theophile

Well-Known Member
In the photos, the laser looks out of alignment.


awsmone

Well-Known Member
Apr 6, 2014
1,616
513
435
Canberra Australia
I don't understand what is trying to be accomplished with the laser.

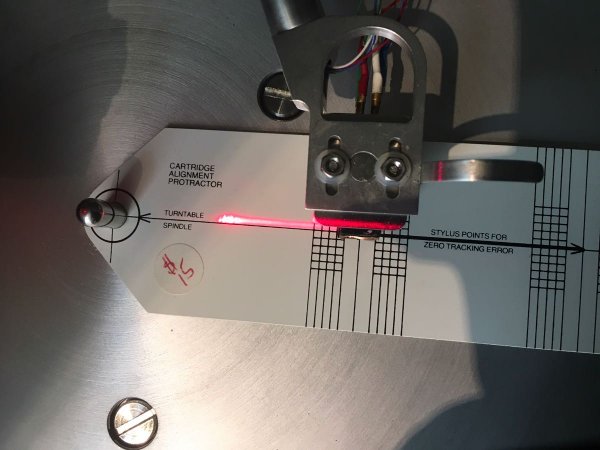

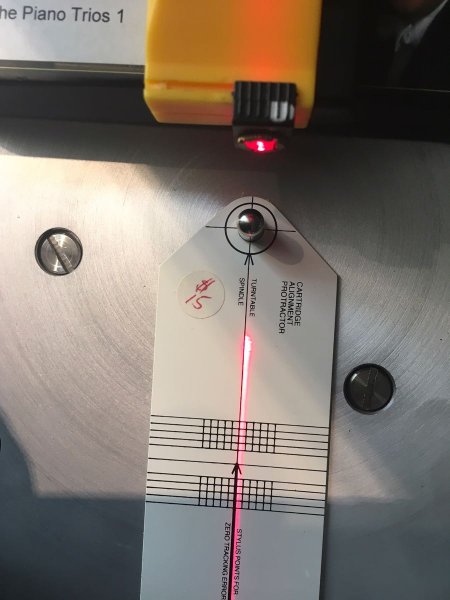

the laser tracks the radius of the tool
so can judge alignment of headshell with laser light on it, rather than by eye which is subject to parallax error


PeterA

Well-Known Member
Dec 6, 2011
12,522
10,688
3,515
USA
the laser tracks the radius of the tool
so can judge alignment of headshell with laser light on it, rather than by eye which is subject to parallax error

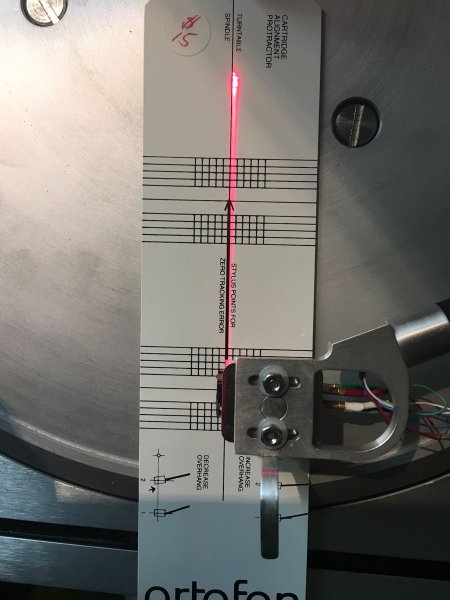

Thank you for that clarification, awsmone. I see what you describe in the bottom photo. Looking at that photo, to me, it appears as though the red laser line is slightly thicker on the left front edge of the cartridge than it is on the right front edge. In other words, the cartridge looks like it needs to be rotated clockwise around the zenith angle for proper alignment. I assume you want the left edge of the red laser beam to run along the center line mark on the protractor because it looks like the two lines do not overlap but rather touch along their edges.

I think more important than lining up the front edge of the cartridge to the laser is to look below the cartridge body to see if the cantilever is properly aligned and parallel to the lines on the protractor. Cantilevers are not always perfectly aligned inside the cartridge body, so it better to go by the cantilever angle/edge than the front or side edge of the cartridge body. Then one should confirm by listening.
