Custom-made cables are always available from Triode Wire Labs, even though it's not stated on the TWL website.

I have a large inventory of "In-Stock" cryogenically-treated connectors, including the Neutrik PowerCons, Type A (NAC3FCA), Type B (NAC3FCB), 4-pin NC4MX & NC4FX as well as the large black, High Current 32A NAC3FC-HC. For speaker cables, I have top of the line Cardas connectors as well as Danny Richie's (GR Research) Tube Connectors (I have the mating speaker binding posts as well). For interconnects, I have my great-sounding RCA & XLR's, but also have super high quality 50 ohm & 75 ohm RCA's & BNC connectors. As far as traditional power cable connectors, I have a large inventory of super high quality Furutech & IeGO connectors for Europe, England/UK, Australia/NZ as well as for North American applications.

Pictured below is a custom "Digital American" cable set for a Netherlands customer of mine, featuring a variety of Neutrik connectors as well as a TRC (Technology Research, LLC) Shock Shield PRCD device. He's using it on a custom Blue Circle power conditioner. Also shown is a custom short set of shielded phono RCA interconnects.

Custom Cable 1.jpeg

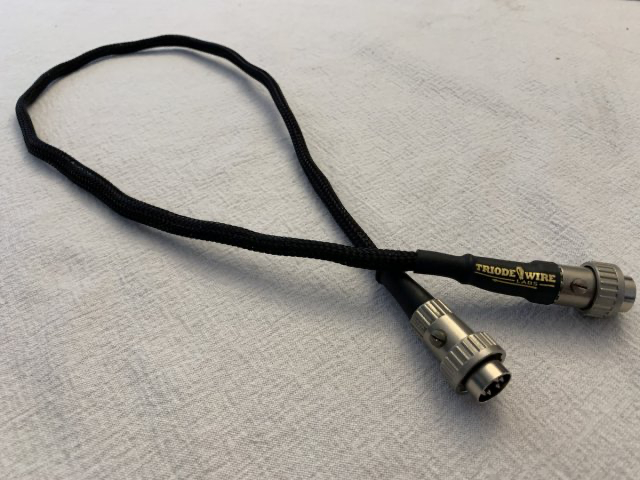

Below are custom umbilical cables (2 different lengths) for a Modwright PH 9.0 Phono Stage...

Modwright PH 9.0.jpeg Modwright Umbilical Cable.JPG

Below is a 3m long REL subwoofer cable for an audiophile in Singapore...

3m REL subwoofer cable.jpeg

Another custom cable below, this one a unique version of my "Freedom" ethernet cable, but instead of two Telegärtner RJ45 connectors, there's only one and it's connected to a Oiyagai B074M3FRDP HDMI connector. It's for a high end optimal use of a NuPrime CDT-10 professional music CD transport I2S HDMI output (DoP256) into a Denafrips Terminator DAC, that has an I2S-B input (RJ45 input socket)...

RJ45 to HDMI cable.jpeg

Once again, another custom cable below. This time a "Spirit 50", a true 50 ohm digital cable with precise 50 ohm BNC connectors. This was custom-made for a customer in Chile, to connect a high-end master clock.

Spirit 50 ohm.jpeg

Below is a a Special Linear Power Supply DC Power Umbilical Cable, Cryogenically Treated, with an Oyaide DC-2.1G barrel connector to a low mass and low capacitance female XLR connector. This was for a HDPLEX 300W Linear Power Supply...

Oyaide DC-2.1G barrel connector to female XLR.jpeg

Below is a a HiFiMAN Adapter from an amplifier into a 4-pin XLR jack for headphones...

HiFiMAN Adapter to 4-pin XLR jack.jpeg

Below is a balanced female XLR connection to a single-ended RCA connection... NO ADAPTERS! Pins 1 & 3 are linked together, whereas Pin 2 is "hot" with the center pin on the RCA connector.

XLR to RCA.jpeg

Below is a "High Power Digital American" power cord fitted with a 32 amp-rated Neutrik PowerCon IEC connector. This one is headed to Hong Kong to be used on a custom PI Audio UberBUSS. I've also fabricated an "Obsession NCF" with the same PowerCon connector, used on a GigaWatt power conditioner!

32 amp PowerCon.jpeg

I have several more custom cables, such as a custom step up transformer made by "The Slaglemeister", Dave Slagle. In discussions with Dave, he favors going from mono back to left/right channels after the phono stage. This requires a Y cable between a transformer volume control and tube amplifiers. This one has a female XLR connector on the single source end of the cable and RCA connectors on the split amp end of the cable.

Still another custom cable, this time for a LG OLED CX48 flat screen TV.

I've also made special speaker cable jumpers for a horn system in Singapore as well as a pair of XLR Y-Adapters. Single female XLR to two male XLR connectors.

A special Y-umbilical cable to run from a Jeff Rowland Design Group PC-1 to provide power to two Jeff Rowland Model 201 mono amps. The Jeff Rowland PC-1 is an advanced external power rectifier and conditioner based on the same Active Power Factor Correction (PFC) technology incorporated in JRDG reference amplifiers.This Y-adapter cable features a high quality C14 IEC male connector to two high quality NEMA 5-20 female connectors.

I'll post additional pics later since I'm limited to 10 per post!

Cheers,
Pete

  • Like
Reactions: Addicted to hifi

Addicted to hifi

VIP/Donor
Sep 8, 2020
4,614
2,009
265
50
Australia
Custom-made cables are always available from Triode Wire Labs, even though it's not stated on the TWL website.

I have a large inventory of "In-Stock" cryogenically-treated connectors, including the Neutrik PowerCons, Type A (NAC3FCA), Type B (NAC3FCB), 4-pin NC4MX & NC4FX as well as the large black, High Current 32A NAC3FC-HC. For speaker cables, I have top of the line Cardas connectors as well as Danny Richie's (GR Research) Tube Connectors (I have the mating speaker binding posts as well). For interconnects, I have my great-sounding RCA & XLR's, but also have super high quality 50 ohm & 75 ohm RCA's & BNC connectors. As far as traditional power cable connectors, I have a large inventory of super high quality Furutech & IeGO connectors for Europe, England/UK, Australia/NZ as well as for North American applications.

Pictured below is a custom "Digital American" cable set for a Netherlands customer of mine, featuring a variety of Neutrik connectors as well as a TRC (Technology Research, LLC) Shock Shield PRCD device. He's using it on a custom Blue Circle power conditioner. Also shown is a custom short set of shielded phono RCA interconnects.

View attachment 83220

Below are custom umbilical cables (2 different lengths) for a Modwright PH 9.0 Phono Stage...

View attachment 83221 View attachment 83222

Below is a 3m long REL subwoofer cable for an audiophile in Singapore...

View attachment 83223

Another custom cable below, this one a unique version of my "Freedom" ethernet cable, but instead of two Telegärtner RJ45 connectors, there's only one and it's connected to a Oiyagai B074M3FRDP HDMI connector. It's for a high end optimal use of a NuPrime CDT-10 professional music CD transport I2S HDMI output (DoP256) into a Denafrips Terminator DAC, that has an I2S-B input (RJ45 input socket)...

View attachment 83224

Once again, another custom cable below. This time a "Spirit 50", a true 50 ohm digital cable with precise 50 ohm BNC connectors. This was custom-made for a customer in Chile, to connect a high-end master clock.

View attachment 83225

Below is a a Special Linear Power Supply DC Power Umbilical Cable, Cryogenically Treated, with an Oyaide DC-2.1G barrel connector to a low mass and low capacitance female XLR connector. This was for a HDPLEX 300W Linear Power Supply...

View attachment 83226

Below is a a HiFiMAN Adapter from an amplifier into a 4-pin XLR jack for headphones...

View attachment 83227

Below is a balanced female XLR connection to a single-ended RCA connection... NO ADAPTERS! Pins 1 & 3 are linked together, whereas Pin 2 is "hot" with the center pin on the RCA connector.

View attachment 83228

Below is a "High Power Digital American" power cord fitted with a 32 amp-rated Neutrik PowerCon IEC connector. This one is headed to Hong Kong to be used on a custom PI Audio UberBUSS. I've also fabricated an "Obsession NCF" with the same PowerCon connector, used on a GigaWatt power conditioner!

View attachment 83229

I have several more custom cables, such as a custom step up transformer made by "The Slaglemeister", Dave Slagle. In discussions with Dave, he favors going from mono back to left/right channels after the phono stage. This requires a Y cable between a transformer volume control and tube amplifiers. This one has a female XLR connector on the single source end of the cable and RCA connectors on the split amp end of the cable.

Still another custom cable, this time for a LG OLED CX48 flat screen TV.

I've also made special speaker cable jumpers for a horn system in Singapore as well as a pair of XLR Y-Adapters. Single female XLR to two male XLR connectors.

A special Y-umbilical cable to run from a Jeff Rowland Design Group PC-1 to provide power to two Jeff Rowland Model 201 mono amps. The Jeff Rowland PC-1 is an advanced external power rectifier and conditioner based on the same Active Power Factor Correction (PFC) technology incorporated in JRDG reference amplifiers.This Y-adapter cable features a high quality C14 IEC male connector to two high quality NEMA 5-20 female connectors.

I'll post additional pics later since I'm limited to 10 per post!

Cheers,
Pete
They look spectacular.

  • Love
Reactions: Triode Pete

Triode Pete

Well-Known Member
Mar 1, 2016
45
53
125
Long Island, NY
www.triodewirelabs.com
Some additional pics...
Below is a "Y-cable" between a Dave Slagle made transformer volume control and tube amplifiers. This one has a female XLR connector on the single source end of the cable and RCA connectors on the split amp end of the cable.

Slagle XLR to RCAs.jpeg

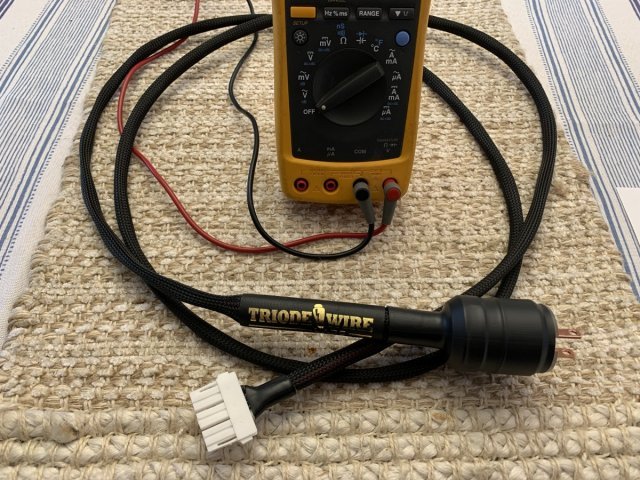

Below is a custom cable for a LG OLED CX48 flat screen TV.

LG TV power cable.jpeg

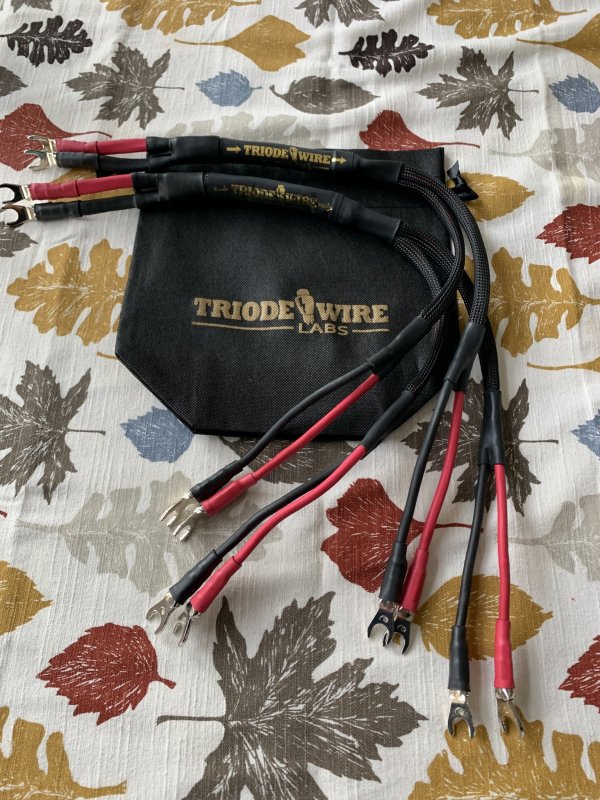

Below is special speaker cable jumpers for a customer's horn system in Singapore...

Speaker Cable jumpers CAB to Pins.jpeg

Below is a pair of XLR Y-Adapters. Single female XLR to two male XLR connectors...

TWL XLR Y-adapters.JPG

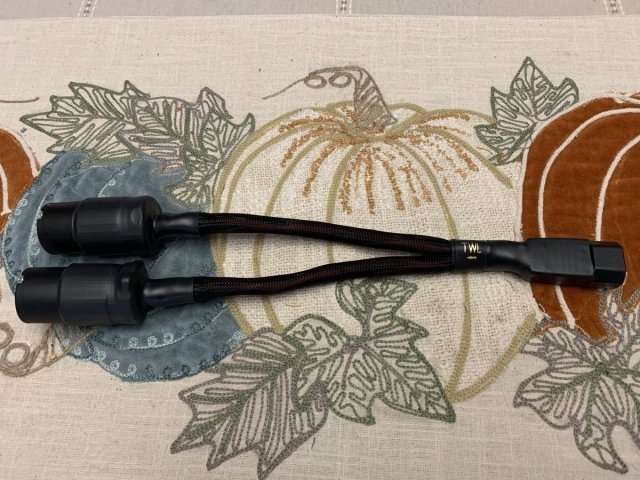

Below is a special Y-umbilical cable to run from a Jeff Rowland Design Group PC-1 to provide power to two Jeff Rowland Model 201 mono amps. The Jeff Rowland PC-1 is an advanced external power rectifier and conditioner based on the same Active Power Factor Correction (PFC) technology incorporated in JRDG reference amplifiers.This Y-adapter cable features a high quality C14 IEC male connector to two high quality NEMA 5-20 female connectors.

C14 to two NEMA 5-20.jpeg

Cheers,
Pete

  • Like
Reactions: MarkusBarkus

Steve Williams

Site Founder, Site Owner, Administrator
There does seem tube some discussion by a few members who feel rhodium creates a horrible sound, one of whom is one of my closest friends who refuses to have any cables with rhodium.


Triode Pete

Well-Known Member
Mar 1, 2016
45
53
125
Long Island, NY
www.triodewirelabs.com
There does seem tube some discussion by a few members who feel rhodium creates a horrible sound, one of whom is one of my closest friends who refuses to have any cables with rhodium.
The main problem with quality (such as Cardas & Furutech) rhodium plated connectors is the TIME it takes to properly "burn-in" & "settle" into one's system. You need to have a lot of patience with quality rhodium plating (hundreds of hours!). Once properly "burned-in", it can be pretty amazing... I once dismissed all rhodium plating but after hearing some properly "burned-in" connectors, my judgment quickly changed!

My customer didn't want rhodium plating since he thought it was not compatible with his gold-plated Furutech receptacles and thought silver would be much better...

My $0.02,
Pete


Triode Pete

Well-Known Member
Mar 1, 2016
45
53
125
Long Island, NY
www.triodewirelabs.com
This time for a repeat customer who just purchased a dCS stack and needed a very flexible XLR cable to bend quickly to a right angle.

I used the great sounding, premium Cardas CG FXLR and CG MXLR XLR connectors in this custom application.

Cheers - Pete
