Capri S II
Introducing the (Capri S 2) Capri S II equipped with input transformer to Capri S very popular. We have deployed a new high performance transformer input to both channels R / L. Very useful RF, electromagnetic measures.
And at the same time protect the internal parts from vibration, sharpened a monocoque body mass hard 6061 aluminum were selected on the basis of the new protected from ingress of harmful radio waves, such as electromagnetic waves very sensitive audio circuitry. Equipped with high-precision parts in a very compact foundation, have reduced high-speed circuit itself.
Function of the preamplifier was designed to make it easy to manipulate the part to be used frequently. Provo Trillium important control is a dual rate controls, is controlled by a very high accuracy range of about 100dB. Good design can be equipped with the optional phono module course. Very fresh, with a speed and musicality, he became the preamplifier snuggle into listener.
It was fairly inefficient and expensive amplifiers until now, large, heavy, and energy waste, has captured Jeff is small, light, energy saving and amp in the near future. Steam engine that seems to have become nuclear power, computers that use a lot of the transistor is significantly faster with the invention of the integrated circuit, as we did it lighter, became the era of the benefit that is also amplifier.
large image
System that consumes energy effectively. As something very natural, it has become a good sound, and high quality work makes sense. Nature has always sought the highest degree of efficiency. Even if the flow of the river, and, even then the distribution of the plant, but also about the movement of animals, wanted the labor-saving nature of the effort. In this way, is the law of nature and efficiency. Sample was cleared of proposition antinomy reasonable price, and this performance is the Capri S II.
Jeff Ro~urando was before we both stunning performance cost and high performance. Preamplifier can be impressed, Capri S II as well as look into the mind of musician. Not only an introduction to high-end, it is a preamp that can be recommended with confidence even veteran audio file. Combination with a stereo power amplifier Model 102S is the best coupling exactly.
We are equipped with high-performance input transformer to both channels R / L of Capri S II. Very useful RF, electromagnetic measures. In addition, we succeeded in further reducing the noise level to renew the circuit board. And at the same time meet the needs of audio files that have been refined, Capri S II is is also a pre-amp for music fans who want indulged in the wonderful world of high-end audio in reasonable cost.
large image
In addition (XLR) to system 2 (RCA) 2 systems, balance, input terminal on the rear panel is also equipped we (unbalanced / RCA) bypass input valid for connections to the surround amplifier imbalance.
Adopting the heart of your audio system and a separate amplifier is the first step in order to achieve our goal of music lovers the whole system is activated, and to reproduce the excitement and enthusiasm of the performance hall. It is a pre-amp to bring to power a large listening room music brings to our hearts the joy of music more than anything, and beauty.
large image

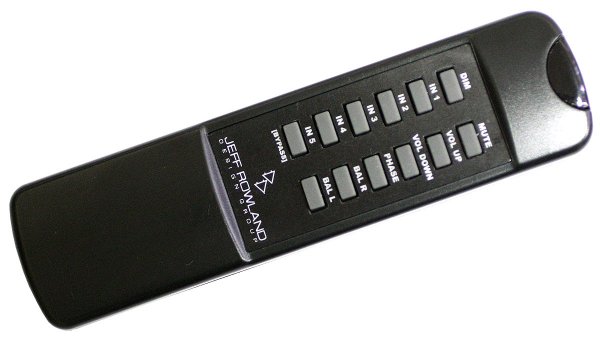

To Capri S II is equipped with a standard remote control which is easy to operate even from a distance. In addition to the 5-channel input selector buttons, each operation bypass, volume, mute, balance, phase, and On / Off display illumination can be performed.
We offer an option module for the phono MM / MC of listening to those who love your analog disk. Are four settings are available to suit the cartridge you are using. Please contact us for more information, including how to set up, or dealer.
Specifications
Input terminal
Unbalanced (RCA) 2 systems
Balanced (XLR) 2 systems
Bypass
Unbalanced (RCA) 1 channel
Output terminal
Unbalanced (RCA) 1 channel
Balanced (XLR) 1 system
Input impedance
Unbalanced 48k?
48k? balance
THD + N
1Vrms 0.0005% output
Gain range
99.5dB (199 steps)
Gain
15dB
Power consumption
6W
Dimension
W348 × H75xD191mm (maximum dimension)
Weight
4.2kg
Bundled items
Remote control
RCA short pin
AC cable
3/2 adapter
Manual
Warranty registration form
Option
Phono module
Setting phono module
Gain = 60dB / Load = 400? (for MC cartridge only)
Gain = 60dB / Load = 100? (for MC cartridge only)
Gain = 40dB / Load = 47K? (for MM cartridge only)
Gain = 50dB / Load = 47K? (for High Output MC)
? If with Capri S II Phono, 60dB gain because they increase compared to the line input, phono input pop experience some noise when switching inputs. You'll need to perform the switching input from lowering the volume level depending on the situation.
