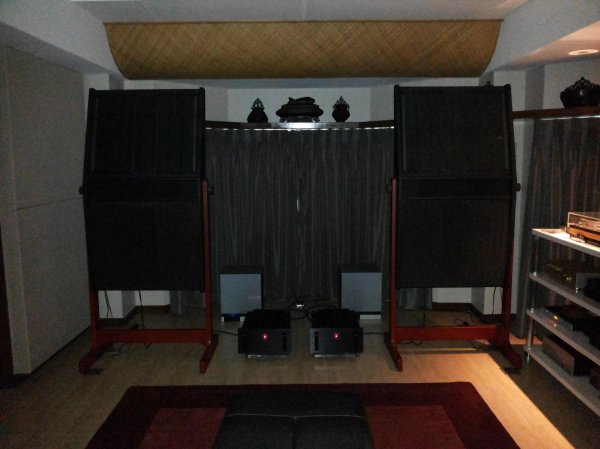

I took a couple of pics with my phone cam with flash, it was dark in the speakers' area. Preamp is an FM Acoustics, and amps are the Lamms.
Mullard88's Main Listening Room
- Thread starter jadis
- Start date
Hi Steve,
The frame that holds the Quads has a circular pattern. The middle part which is supposed to house the ribbon is the most forward part. Then both the lower and upper part of the frame slope backwards. It's now set up with the lower Quads more forward. That's the reason the upper panel is sloped backwards.
I set it up by just listening to the lower panels while playing with the tilt of the lower Quads. When it was right for my taste, I connected a short speaker cable to the upper part. The speaker cabling is done in series, from amplifier to lower Quad, then from lower Quad to upper Quad. The speakers are firing straight, there is no toe in. I'm still listening to the stacked Quads. No subwoofer. No ribbon tweeter.
The frame that holds the Quads has a circular pattern. The middle part which is supposed to house the ribbon is the most forward part. Then both the lower and upper part of the frame slope backwards. It's now set up with the lower Quads more forward. That's the reason the upper panel is sloped backwards.
I set it up by just listening to the lower panels while playing with the tilt of the lower Quads. When it was right for my taste, I connected a short speaker cable to the upper part. The speaker cabling is done in series, from amplifier to lower Quad, then from lower Quad to upper Quad. The speakers are firing straight, there is no toe in. I'm still listening to the stacked Quads. No subwoofer. No ribbon tweeter.
Sam, I was a 'photobug' in the late 70s and 80s and I guess my old 'skills' still has stuck with me. Indeed, I remember you always have dim or no light in our audio sessions. I do that too. And by the way, I must say that your listening chair is the most relaxing I've ever sat. Perfect from head to feet.
Last edited:
Hi Jadis,
Your paparazzi skills has not faded at all. I recall you had a photo topic called asses and lasses when we were still in university.
You can put the same listening chair in your music room. You'll just have to "bow" your Magnepan towards you a bit to compensate for the lowered ear level lounging in such a chair.
Your paparazzi skills has not faded at all. I recall you had a photo topic called asses and lasses when we were still in university.
You can put the same listening chair in your music room. You'll just have to "bow" your Magnepan towards you a bit to compensate for the lowered ear level lounging in such a chair.
Steve williams
Site Founder, Site Owner, Administrator
When the Tres Amigos visited Seattle last year and heard Ki Choi's system, Ki does this very thing to his large Maggies
Hi Jadis,
Do you remember 5 or 6 years ago, I had a pair of Magnepan 1.6 that Super Mario ripped apart so that we can experiment and modify? One of the things we discovered is that they sounded best when tilted down towards the listening seat.
Do you remember 5 or 6 years ago, I had a pair of Magnepan 1.6 that Super Mario ripped apart so that we can experiment and modify? One of the things we discovered is that they sounded best when tilted down towards the listening seat.
Yes Sam, I recall you had the 1.6 before. That's an interesting tweak. I should try it some time.
I see you have just the same frame I have owned in the late 80's - the HQD frame built for the Mark Levinson system. In my room, for my taste the midrange of the double stack was too rich with some excess of mid bass. However I remember that when the ribbon tweeter was added, crossed at 7 kHz, the balance became much more natural. It was curious that the "supper" tweeter, that had minimal contribution, could subjectively improve the midrange significantly.
Do you tilt the stack to optimize the tonal balance or the image?
Hi microstrip,
When I set up, my first concern is resolution of the quantity of details. I pick whichever gives me the richest sound. Tonal balance, I will solve it by changing equipment, power cables, speaker cables, interconnect cables, whatever it is along the equipment chain. I do enjoy imaging but I am not an imaging freak. I am satisfied as long as I have a sense of each sound coming from a certain part of the stage.
When I set up, my first concern is resolution of the quantity of details. I pick whichever gives me the richest sound. Tonal balance, I will solve it by changing equipment, power cables, speaker cables, interconnect cables, whatever it is along the equipment chain. I do enjoy imaging but I am not an imaging freak. I am satisfied as long as I have a sense of each sound coming from a certain part of the stage.
