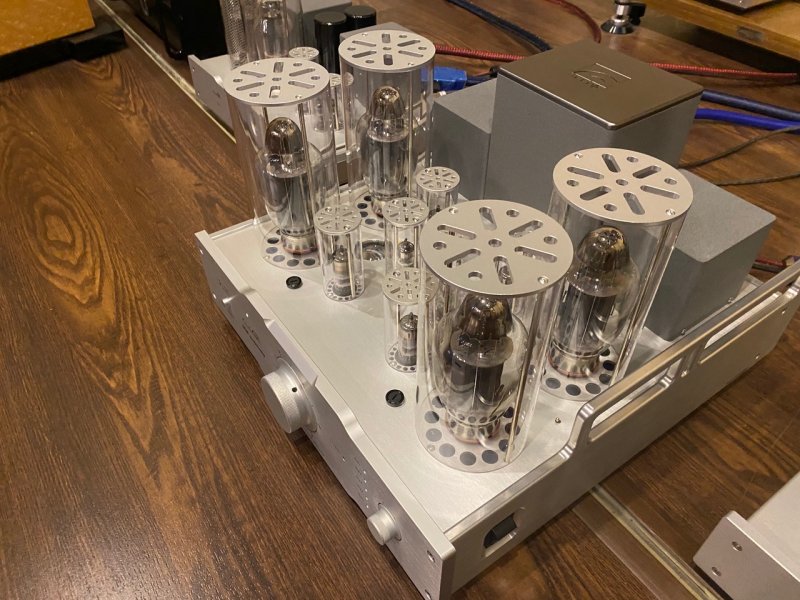

Announcing the new circuit design by KS Park featuring the coveted 61-Step Constant Impedance Attenuator which preserves dynamics at any volume. New driving stage 6F4 and the KT170 tubes with a modified and excellent looking chassis. MSRP $13900 USD. Black or Silver chassis.
Now in production and under review with anticipated review publication mid summer. Contact your regional Allnic dealer for more information.
Technical Specification | |
Output Power | 120W (8? load, at 1kHz) |
Distortion | 0.17% at 1kHz at 10W |
Frequency Response | 20Hz-20kHz Flat |
S/N Ratio | -80dB (CCIR, 1kHz) |
Damping Factor | 8 at 8? load at 1kHz |
Voltage gain | +40dB |
Input Impedance | 10k? (single-ended, unbalanced) |
Input Sensitivity | 0.3V for rated power |
Fuses | 0.5A, 250V, 20mm slow-blow (KT170’s); 5A, 250V, 20mm slow-blow (IEC Mains) |
Tubes | KT170 x 4 (power triode); D3Ax 4 (second stage drivers); 6J4 x 2 (first stage driver) |
Dimensions(WDH) | 44cm x 48cm x 30cm |
Weight | 36kg |
Now in production and under review with anticipated review publication mid summer. Contact your regional Allnic dealer for more information.
