Question on crossover simulation

Florian

Well-Known Member
Jun 26, 2016
40
40
123
Switzerland
Hello Members,

i am trying to find a software which can simulate the crossover schematic.
I did check the values on the schematics in various calculators and they seem to check out.

From what i understand, they are two 1st order high pass filters in series + two 1st order low pass filters in series to create a real slope.

Q: Is this a bandpass filter or how do you call that?
Q: Are the crossover points at 0db or -6? (For example: 0db @ 48Hz ; -6db @96Hz)

Thanks for any help

Florian



YashN

New Member
Jun 29, 2015
951
1
0
Canada
Hi Florian,

Have you checked out LTSpice?



Florian

Well-Known Member
Jun 26, 2016
40
40
123
Switzerland
Hi YashN,

thanks for the tip!
I am getting there, altough i had to load a module for my Burr Brown OPA606KP.



YashN

New Member
Jun 29, 2015
951
1
0
Canada

Florian

Well-Known Member
Jun 26, 2016
40
40
123
Switzerland
You're on the right track.

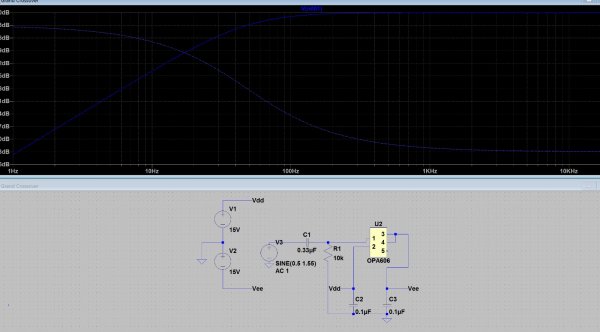

Yes, but now i am hitting a wall. I cant simulate the high pass but maybe when i get some more free time.
I did set the source to 1V AC....



Attachments

  • Grand_Midrange.jpg
    105.5 KB · Views: 165
Last edited:

YashN

New Member
Jun 29, 2015
951
1
0
Canada
Looks like all of them all in band-pass configuration to me.

You could trying simplifying the Tweeter band-pass with just one low-pass and one high-pass and see if it works, then add the others.

Keep at it, you should reach your goals.


Florian

Well-Known Member
Jun 26, 2016
40
40
123
Switzerland
Hi YashN,

thanks, i got it to work :)

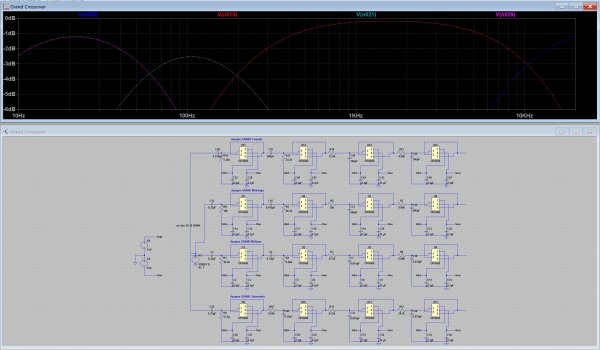

Fully 4 Way


Last edited:

Florian

Well-Known Member
Jun 26, 2016
40
40
123
Switzerland

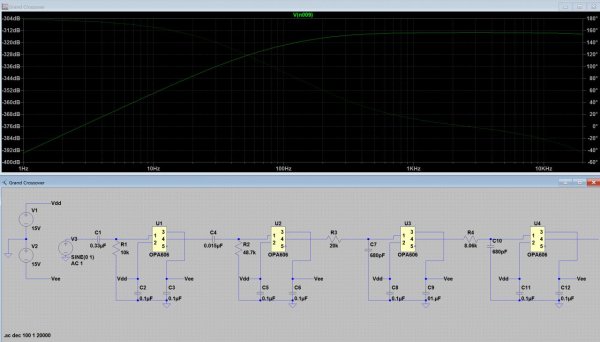

Final with no phase.



YashN

New Member
Jun 29, 2015
951
1
0
Canada
Well done!
