Wire Splicing

Kingrex

Well-Known Member
Feb 4, 2019
1,608
1,168
230
I don't like wire nuts. Functionally they are fine. They are one of the best connectors I have used in the field. But for audio, and people going to the Nth degree they have issues.
1. It will create a bad inductive vertices that will double back a great deal of RF noise that’s attempting to move away from the system and towards the panel and Earth.

2. It raises the AC impedance a little. Wire nuts are code compliant, but I’m looking at the transient current too.

In order to get around them I looked for C crimps. This is what I came up with and use with stranded and solid wire. It is especially useful when you have AFCI in a panel and the tail is not long enough to reach the neutral bar. I extend them like this.

I will put a drop it Deoxit on the wires after I lock them. It will migrate up and down. Then I wrap the crimp in plumbers teflon tape. Then I go over it with Electrical vinyl tape.

I though people might find this interesting.
Rex


Attachments

  • Wires Meshed.jpg
    Wires Meshed.jpg
    296.4 KB · Views: 17
  • C Crimp Open.jpg
    C Crimp Open.jpg
    394.5 KB · Views: 18

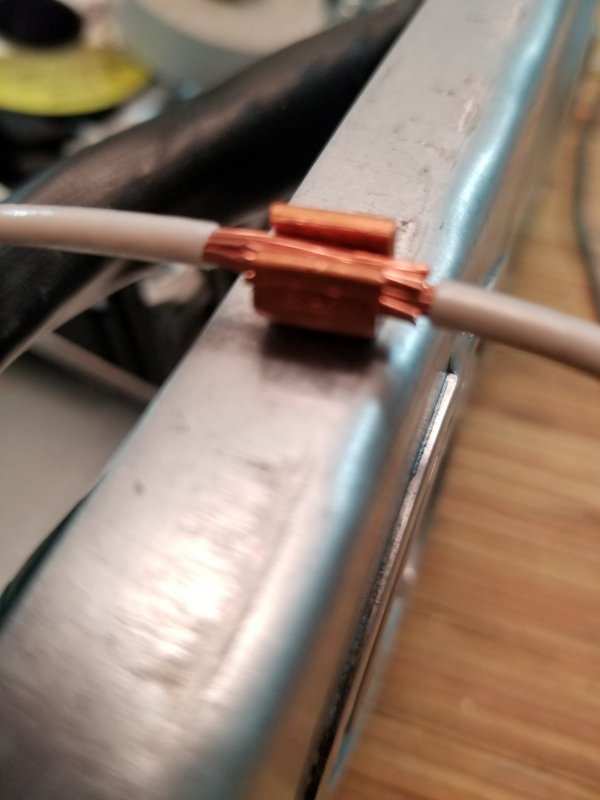

  • C Crimp Locked.jpg
    C Crimp Locked.jpg
    367.6 KB · Views: 19
  • C Crimp Taped.jpg
    C Crimp Taped.jpg
    603.5 KB · Views: 20
  • Crimp Tool.jpg
    Crimp Tool.jpg
    633.5 KB · Views: 17
