Pacific dac: Lampizator's new top of the line dac

[Steve williams]

What footers have people settled on? Right now I am just using the 3 cylindrical feet. I haven't tried the spiked footers yet.

My Pacific is sitting on an HRS platform so I don't think I need to really do much. Just curious.

My Pacific DAC is sitting o a set of Center Stage 1.5 footers as is my Extreme and both are on Critical Mass Systems racks



[jturbo]

What footers have people settled on? Right now I am just using the 3 cylindrical feet. I haven't tried the spiked footers yet.

My Pacific is sitting on an HRS platform so I don't think I need to really do much. Just curious.

My Pacific DAC is sitting o a set of Center Stage 1.5 footers as is my Extreme and both are on Critical Mass Systems racks

I am using the stock footers on a Stacore Advanced. Have also used an HRS M3x to good effect.



[wisnon]

Tesla AD1n comes in at 1.8A too.

So come on Pac pussies. Post your readings!

Pac has no EXACT PX25 setting, so use 101d setting for PX25, AD1n & RD too. AD1 should also use PX4 setting.



[dminches]



[Zero000]

Pac has no PX25 setting, so use 101d setting for PX25, AD1n & RD too. AD1 should also use PX4 setting.

Just curious to know what it supplies with a PX25 / RD in it Norman. I am surprised no one has posted the answer given how easy it is to do.

Given virtually no one uses NOS PX25 1.8A would be a good answer since that is the KR spec.



[wisnon]

Yoda told me what to do. He went deep in explaining that 101d is 4.5v heater and there is a 10% tolerance and what is not used in voltage gets added to current.A mini auto-balancing function, not like the GG but with snuff "play" to compensate significantly. At least that is what I recall, it was months ago.



[Zero000]

Yoda told me what to do. He went deep in explaining that 101d is 4.5v heater and there is a 10% tolerance and what is not used in voltage gets added to current.A mini auto-balancing function, not like the GG but with snuff "play" to compensate significantly. At least that is what I recall, it was months ago.

Well it is definitely looking like 101D is NOT good for AD1n according to adamely and dminches and I think it was Howie's problem with RDs too.



[Zero000]

BTW Philips Ad1/350 4683 and Loewe AD1 will be A OK on PX4 setting.



[wisnon]

I had no problem with AD1n on 101d setting and I confirm that PX4 is good for 4683 and AD1. Goran runs his RD27 beautifully on 101d setting.



[wisnon]

Pac setting for 101D is 4.5v/1amp. That is the official 101d spec and used by PSvane, etc.



[Alrainbow]

Stop saying amps it’s not correct. Only spec voltage to be measured. any tube less than 2 amps for the heater is ok providing a setting gives correct voltage. An example of not correct is 2a3 way to high in needed amps
Another is 6 a3 it nerds 6.3 volts max tube heater output is 5 volts that guy was lucky not to smoke the dac lol. if someone would take specs of the typical tube sometime one could then post suitable tubes.



[Alrainbow]

I had no problem with AD1N on 101d setting and I confirm that PX4 is good for 4683. Goran runs his RD27 beautifully on 101d setting.

What’s the specs of an AD1 ?



[wisnon]

What’s the specs of an AD1 ?

AD1 is 4v0.95amp
AD1n is 4v2.0amp
6a3 is a no go in Pac.



[Alrainbow]

Ok so what tube setting did yoda advise



[dminches]

AD1 is 4v0.95amp
AD1n is 4v2.0amp
6a3 is a no go in Pac.

I used 6A3s in my Big 7. I guess I shouldn’t have?



[Alrainbow]

It works ok in all his dacs but the heater is way under current. under heater amps is a tough goid n bad item. It makes tubes age faster but it can be reversed if corrected.



[wisnon]

Big7 old is autobalancing like GG1. All fine with 6a3. Pac and GG2 are discrete 5 position settings...very different operating principles.



[dminches]

Big7 old is autobalancing like GG1. All fine with 6a3. Pac and GG2 are discrete 5 position settings...very different operating principles.

Good to know now that I have a PAC.



[Alrainbow]

I used 6A3s in my Big 7. I guess I shouldn’t have?

The internal ballast resistors are only 5 watts
The relays used are rated at 2 amps.



[wisnon]

Ok so what tube setting did yoda advise

Pac has no PX25 setting, so use 101d setting for PX25, AD1n & RD too. AD1 should also use PX4 setting.



[dminches]

Pac has no PX25 setting, so use 101d setting for PX25, AD1n & RD too. AD1 should also use PX4 setting.

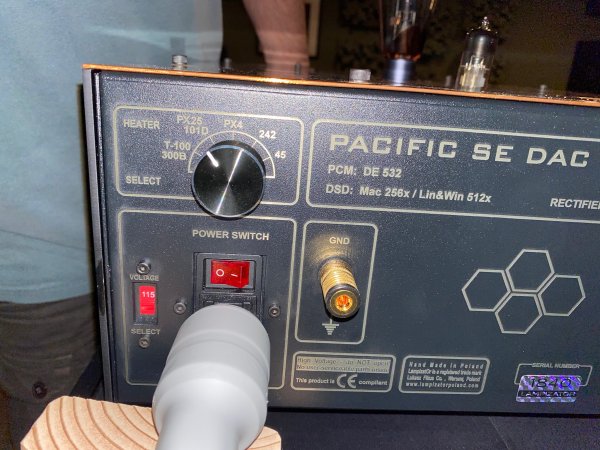

My PAC has a PX25 setting.
