SMT Wing Diffusors vs. QRD Diffusors? Effective?
- Thread starter caesar
- Start date
600 or 700 euro per piece. You can choose the color of the base - black or white acrylic or a veneered MDF.
The V wings are not in acrylic but in polycarbinate. The S wings are available in acrylic at a length of 80 cm. I am waiting to get longer S wings as well as V wings in acrylic as this material is really stealthy compared to polycarbinate. My audio room is my living room so I want to have the least intrusive visual impact from the acoustic treatment. In the mean time I have a mix of both in my audio room as a temporary fix (thanks to Flyer who is assisting me in this journey). More news to come in a few months time I have been told. The impact of the wings is just incredible.
I am effectively building a reference room for myself at the moment with SMT material. It will be a level 3 room in 22 m².
I will be opening a separate thread when the room will be 'publishable'. An event, like an open door weekend, is being envisaged! Again, more to come in coming weeks.
Don"t know how to get the pictures straight but you get the flavour no doubt.

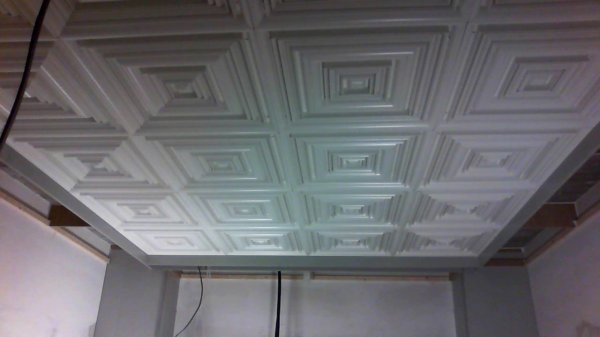

The casings you see against the wall are helmholtz resonators. I have a mix of them as being built, part of the ceiling and a number of V6, V5 and V4 varitunes.
The Flower, S- and V-wings still need to be brought in. I am waiting for all works to finish before these are moved into the room.
I will be opening a separate thread when the room will be 'publishable'. An event, like an open door weekend, is being envisaged! Again, more to come in coming weeks.
Don"t know how to get the pictures straight but you get the flavour no doubt.
The casings you see against the wall are helmholtz resonators. I have a mix of them as being built, part of the ceiling and a number of V6, V5 and V4 varitunes.
The Flower, S- and V-wings still need to be brought in. I am waiting for all works to finish before these are moved into the room.
Lovely room Elberoth.
You may test, if you like, to put the V-wings closer to the speakers or more interestingly, put your speakers closer to them where they are now. The latter may result in an even wider soundstage without loss of focus.
I say 'may' each time simply because each room and listening preference is different though the phenomenons above are quite systematic when using these wings.
If you only have two of these wings, do the test where they have most effect: at the first reflection point at the side of the speakers or at the back of the speakers (i.e. about 40 cms behind the speakers with the edge of the wings almost in line with the side of the speaker).
You may test, if you like, to put the V-wings closer to the speakers or more interestingly, put your speakers closer to them where they are now. The latter may result in an even wider soundstage without loss of focus.
I say 'may' each time simply because each room and listening preference is different though the phenomenons above are quite systematic when using these wings.
If you only have two of these wings, do the test where they have most effect: at the first reflection point at the side of the speakers or at the back of the speakers (i.e. about 40 cms behind the speakers with the edge of the wings almost in line with the side of the speaker).
Well, looking at the picture you do seem to have some room right behind the speaker, between the speaker and the equipment stand. But that is only the picture of course (nice flooring BTW!) It would not be ideal in distance from the speaker but will give you a good idea or might even suffice !
The primary function of the wings in my room is to increase sound stage stability. I have a window on the left hand side, which changes the acoustic conditions compared the right side.
If I ever buy a second pair, I may consider putting them behind the speakers (but that is still not the first reflection point - the first reflection points at the back is between the speakers, where my eqipment platforms are).
If I ever buy a second pair, I may consider putting them behind the speakers (but that is still not the first reflection point - the first reflection points at the back is between the speakers, where my eqipment platforms are).
Thank you Krelle,
I will try to move the side panels. BTW I am in a different configuration compared the pictures you have attached, I am a little less than 4 meters away by the speakers.

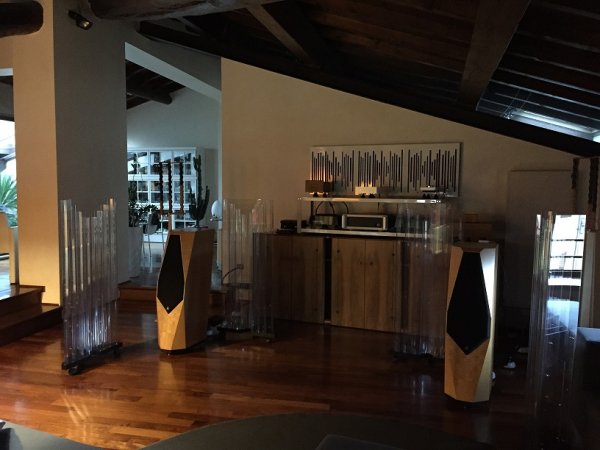

this pictures in taken from my listening point.
Wings are continuosly improving.
Matts added a more stable basis (doubling the polycarbonate foil)
Last edited:
Paolo,
If you took the picture from your listening position, it seems the V-wing at the side is not positioned at the point of first reflection...
It seems their effect could be increased by having the middle of the wing at the first reflection point which normally implies that the side of the wing, closest to the loudspeaker, is not more aft than the front of the loudspeaker. How much more to the front depends on the distance from the wing to the side of the speaker, listening position and preference...
Michel
If you took the picture from your listening position, it seems the V-wing at the side is not positioned at the point of first reflection...
It seems their effect could be increased by having the middle of the wing at the first reflection point which normally implies that the side of the wing, closest to the loudspeaker, is not more aft than the front of the loudspeaker. How much more to the front depends on the distance from the wing to the side of the speaker, listening position and preference...Michel
Paolo,
If you took the picture from your listening position, it seems the V-wing at the side is not positioned at the point of first reflection...
Michel
Hi Michel, thank you,
yes, indeed, you are right, but I have to solve the lack of left corner, and this configuration seems to be the better. But I will try again, as you and Krelle suggested me.
I really like the look of your Diamond roof! Im looking forward to see more pictures in your new thread. Diamonds are forever.. Keep up the good work
Best regards Krelle
The primary function of the wings in my room is to increase sound stage stability. I have a window on the left hand side, which changes the acoustic conditions compared the right side.
If I ever buy a second pair, I may consider putting them behind the speakers (but that is still not the first reflection point - the first reflection points at the back is between the speakers, where my eqipment platforms are).
Beautiful room and system, Adam. That is one that I would like to hear. BTW, we are looking forward to getting the Lampizator B7.
yes, indeed, I have repositioned the wings as you suggested and the soundstage opened.
The middle bass is stronger and more physic.
Loudspeakers are completely disappeared.
The total image is superbly neutral, well-balanced, uncolored, natural and detailed at same time.
