Entreq Tellus grounding
- Thread starter spiritofmusic
- Start date
3 people in Vancouver connect 2 Silver Tellus together before. I am not sure how the person in USA connect his 2 Silver Tellus and Atlantic Tellus, I don't know him.
Let's call the post# 1,2,3 and 4, from left to right.
Each box, post 1 to 2, 2 to 3, 3 to 4, 1 to 4. Total of 4 jumpers each box. 8 jumpers for 2 boxes.
Connect both Silver Tellus, Post 1 of box 1 to post 1 of box 2, Post 2 of box 1 to post 2 of box 2, do the same to post 3 and 4. There is another 4 jumpers here.
Total 12 jumpers have been used.
They connected all equipments and Synergistic Research Tranquility Base to both Silver Tellus. They have used 2 Silver Tellus like this for 2 years. After connecting a ground cable from Silver Tellus to wall receptacle. One person removed all the jumpers, he felt there are interference with the jumpers. The other two person still prefer with the jumpers.
I think connecting 2 Silver Tellus together is not good when both analog and digital equipments are connect to Silver Tellus.
I bought Silver Tellus 2 months ago. I begin with 1 jumper and got up to 4 jumpers. One day, I suddenly realize it need 6 jumpers in order to connect all the posts together. With 6 jumpers, any of the post is connect to the other 3 posts. I added jumper on post 1 to 3 and post 2 to 4. If I have 2 Silver Tellus, I will use the same 12 jumpers, 6 jumpers on each Silver Tellus. Digital equipments to one of the Silver Tellus and analog equipments to another Silver Tellus.
the mind boggles.
it is going to take me a few days to absorb all this. my hearty congrats to our esteemed fellow Entreq explorers in British Columbia, they have set the bar very high for effort!!!!
I guess I have some work to do.
The way I connected the ground boxes is different to anyone. I don't think anyone will do the same connection as me.
From 2 different wall receptacle, 2 ground cables(Odin and Valhalla) connect to the Sound Mechanics DC1 box. From DC1 box to PX2000 platform(which has grounding function) using four pieces of V2. No connectors can accept 4 pieces of V2, I have to used spades and bananas to connected them together. 2 Valhalla ground cable with power plugs to my power conditioner Exact Power EP15A(one to digital and one to analog outlet). Mundorf 1.5mm wire(I will change this one in the future) from PX2000 to Silver Tellus. V2 from PX2000 to one of the compartment of Poseidon. DAC to PX2000 connect with Mundorf(need to change soon).
I plan to used the other compartments of Poseidon to power amp speaker output negative terminal. I am waiting for the spades to arrive before I can do the connection.
I connected Preamp to Silver Tellus using a short piece of V2 as seen in the picture. 4 strands to right channel and 3 strands to left channel.
From 2 different wall receptacle, 2 ground cables(Odin and Valhalla) connect to the Sound Mechanics DC1 box. From DC1 box to PX2000 platform(which has grounding function) using four pieces of V2. No connectors can accept 4 pieces of V2, I have to used spades and bananas to connected them together. 2 Valhalla ground cable with power plugs to my power conditioner Exact Power EP15A(one to digital and one to analog outlet). Mundorf 1.5mm wire(I will change this one in the future) from PX2000 to Silver Tellus. V2 from PX2000 to one of the compartment of Poseidon. DAC to PX2000 connect with Mundorf(need to change soon).
I plan to used the other compartments of Poseidon to power amp speaker output negative terminal. I am waiting for the spades to arrive before I can do the connection.
I connected Preamp to Silver Tellus using a short piece of V2 as seen in the picture. 4 strands to right channel and 3 strands to left channel.

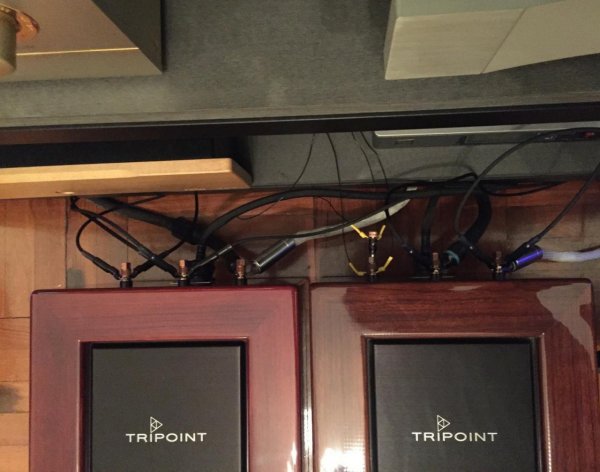

The picture is from a Hong Kong hifi forum. The owner of this 2 Tripoint said he used 1 jumper cable to connect 2 Tripoint together. There are too many cables at the back, I can't tell which is the jumper cable. He said using jumper to connect 2 Tripoint together, it is like a veil has been removed.
I had to sit down after reading that , and I thought I was on mission . So by jumping the posts , you feel that the entire grounding compound within is better utilized ? I can try jumping my two Olympus Teluus units and see if there is an improvement . As you mention physically an Entreq post can at the most accept 3 lugs . That means you are only able to ground one component , at most to one post . Remember that the Olympus Tellus has solid silver binding posts , not the hollow copper posts that accept banana plugs on the Silver Tellus
yes, Jazzhead is a very bad influence.
but he was right on with his recommendations.
Spreading tentacles you too Mike .
Have been thinking of grounding the negative post of my speaker with an Olympus Minimus plus A Minimus . Reading your recommendations on passive speaker chassis grounding , pushes me closer to taking the step.
Spreading tentacles you too Mike .
Have been thinking of grounding the negative post of my speaker with an Olympus Minimus plus A Minimus . Reading your recommendations on passive speaker chassis grounding , pushes me closer to taking the step.
I think maybe Edmund and the Vancouver Entreq Cartel are a storm cloud moving in to stir us up. I better fasten my seat belt and enjoy the ride....and keep my mind open.
and then there are the new Entreq Infinity cables you mentioned yesterday to consider too.
First person who connect the posts of Olympus Tellus. 2 jumpers to connect the 3 left posts and 2 jumpers to connect the 3 right posts. Before Olympus Tellus, he used 2 Silver Tellus with 12 jumpers. When he upgrade to Olympus Tellus, he think the difference is not worth the extra money. He connected the jumpers and think that is a big jump in performance.
Second person to connect the posts of Olympus Tellus. He used 5 jumpers to connect all 6 posts. Before he has a Silver Tellus with 4 jumpers and an Atlantis Tellus. He said adding the Atlantis Tellus is useless and sold it. From one Silver Tellus to Olympus Tellus is a big upgrade.
The third person who own Olympus Tellus, he did not use any jumpers to connect the posts. He began with 2 Silver Tellus with 12 jumpers connecting 2 Silver Tellus. Remove all the jumpers on the Silver Tellus. He prefer without any jumpers.
I have grounded my router to the Silver minimum with significant results in a quite background noise. Has anyone else had similar results?
Yes, the router is a worthwhile application though you can achieve a similar result with a shorting plug like AR or following the X-terminator recipe on which it is based
Eds60...The jumper concept is very intriguing. I have used my Tripoint Troy to attach to an unused post on my Silver Tellus to slightly improved benefit, but that thinking was along the lines of draining any charge away from the mineral content in a closed loop box/ground system. I will need to explore further based on your jumper insight. It also appears that in some of your pictures the stock Entreq cap was drilled in the center to accommodate a banana plug simultaneously in the ground post...is that correct or am I misinterpreting the photos. Also, can you advise as to the wingnut size required for the Entreq ground posts...I obviously have more work to do...
Entreq Infinity - my Xmas has come early.
Took delivery and installed today Entreq Apollo Infinity speaker cables and matching jumpers for my biwire YG Acoustic Kipod Signature passive speakers, Entreq Atlantis Infinity dual AES cables for DCS Scarlatti transport, Scarlatti clock and newly acquired factory refurbished Paganini DAC, and Apollo Infinity 3.5 earth cables hooked to Olympus 10 and K2.
Will post some photos and a report hopefully later today but eating now no 1 priority!
Took delivery and installed today Entreq Apollo Infinity speaker cables and matching jumpers for my biwire YG Acoustic Kipod Signature passive speakers, Entreq Atlantis Infinity dual AES cables for DCS Scarlatti transport, Scarlatti clock and newly acquired factory refurbished Paganini DAC, and Apollo Infinity 3.5 earth cables hooked to Olympus 10 and K2.
Will post some photos and a report hopefully later today but eating now no 1 priority!
+1.
I have 8 Infinity series cables incoming.....a week or two away.
and btw; eating is overrated.
