Hello,
the first project of my DIY loudspeakers i have served Ti6k- JBL. My first contact with
them, was in distant 2005.
I started working with them in 2009 and finished in 2012.

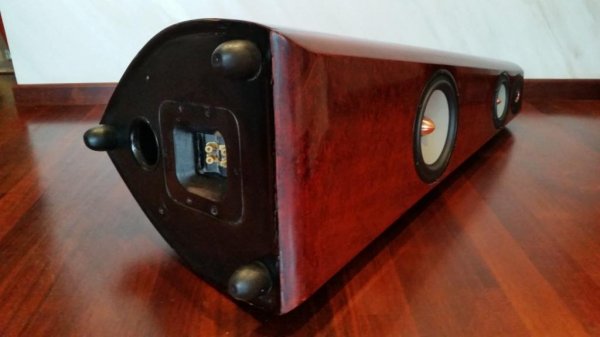

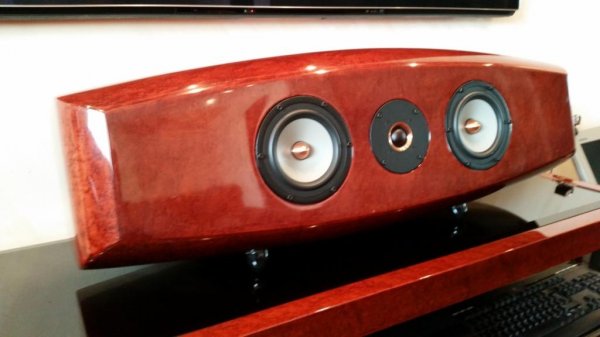

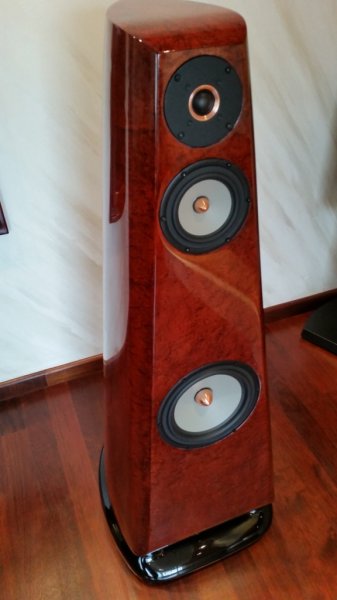

The loudspeakers are "SEAS"- Excel / Tw-1”, Mw-5”for center 2? 5.5”,Bass-8,5”/ and cross-over parts- "Intertechnik".

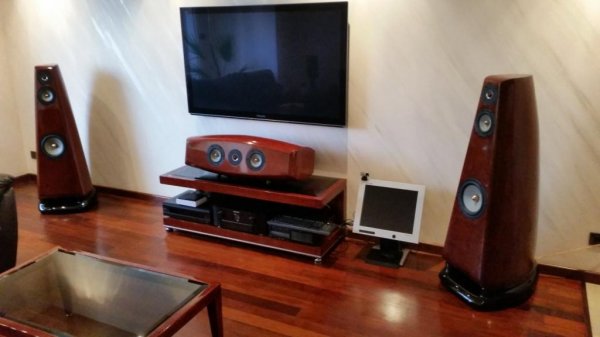

Have are some pictures, if there is interest, i will continue.
Regards!


Attachments

  • 7-.jpg
    158.3 KB · Views: 1,132
  • 4-4.jpg
    63.3 KB · Views: 969
  • 5-5.jpg
    148.2 KB · Views: 963
  • 6-6.jpg
    61.1 KB · Views: 907

YashN

New Member
Jun 28, 2015
951
5
0
Canada
I'm more interested in Open Baffles these days, but very nice finish and glossy look, joroaitchev, looks professional.


treitz3

Super Moderator
Staff member
Dec 25, 2011
5,445
923
1,290
The tube lair in beautiful Rock Hill, SC
Hello and please allow me to offer you a very warm welcome to the WBF. Looks like you have done an OUTSTANDING job here. Very nice sir, very nice.

Tom


Folsom

VIP/Donor
Oct 25, 2015
6,003
1,470
520
Eastern WA
They look better than most manufacturers abilities. I would expect them to spendy speakers as products if I didn't know they were DIY.


Hi-FiGuy

Member Sponsor
Feb 23, 2015
2,222
731
385
Welcome and they are stunning and if they sound as good as they look, you have got gold!


jororaitchev

Well-Known Member
Jan 5, 2017
69
21
115
Bulgaria-Sofia
Thank you all, for the good evaluation of my work!

Now go, how they made the speakers:

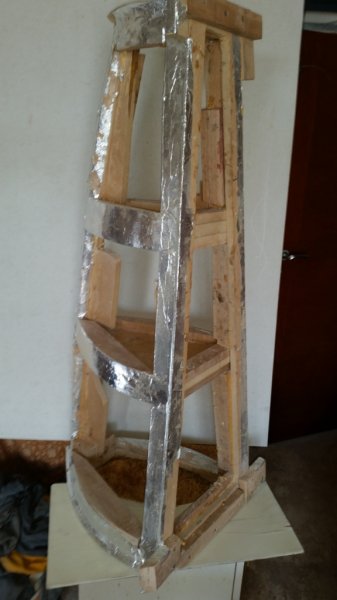

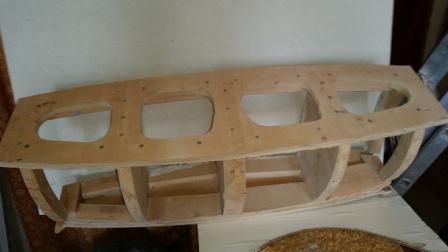

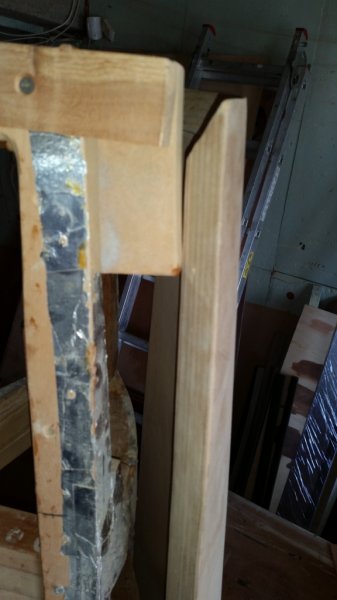

First did this "home-matrix".... {1-1-1.jpg (170.2 KB), 2-.jpg (21.6 KB)}

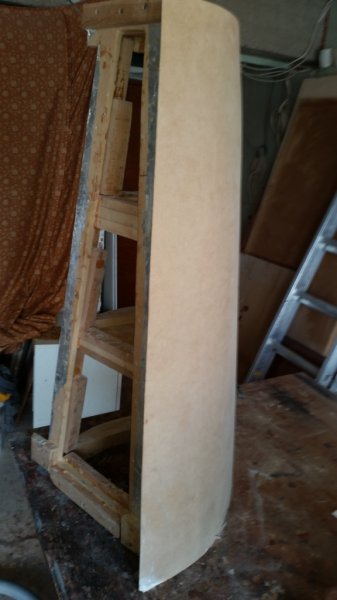

On fire therein 8 layers / 4mm / MDF.
The result is two such shells ...

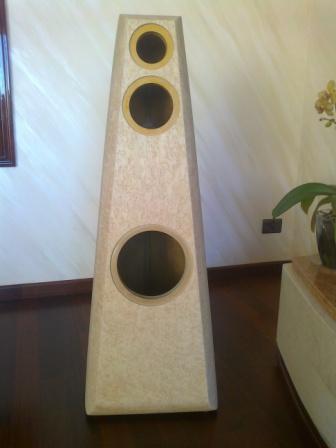

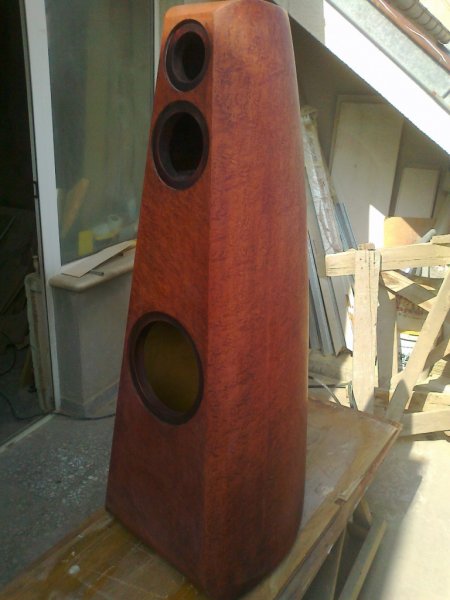

Follows; assembly of the structure veneering veneer 'Birds' maple' toning and everything else ....
Greetings,
Joro

PS. Because of limitation, for now these are pictures.


Attachments

  • 1-1-1.jpg
    170.2 KB · Views: 652
  • 2-.jpg
    21.6 KB · Views: 618
  • 3-3.jpg
    173.4 KB · Views: 622
  • 3-.jpg
    165.8 KB · Views: 612
  • 3-3--3.jpg
    131.4 KB · Views: 622

jororaitchev

Well-Known Member
Jan 5, 2017
69
21
115
Bulgaria-Sofia

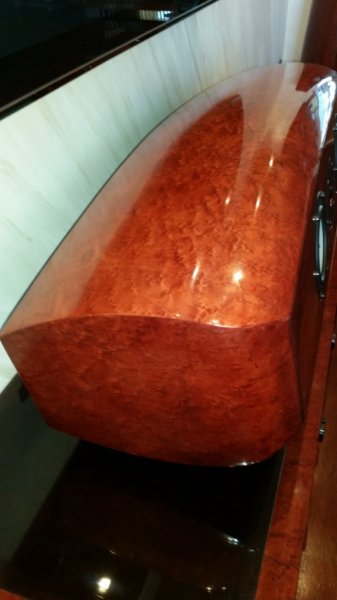

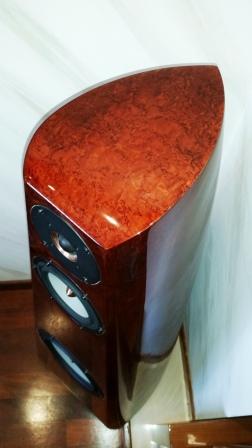

The finish is and 35-40 layers of acrylic auto acrylic varnish.And after each layer-polishing in order to obtain this:

Generally that's all!
Later I will publish technical parameters.
Greetings!


Attachments

  • 001?????? ?????..jpg
    001?????? ?????..jpg
    23.7 KB · Views: 589

jororaitchev

Well-Known Member
Jan 5, 2017
69
21
115
Bulgaria-Sofia

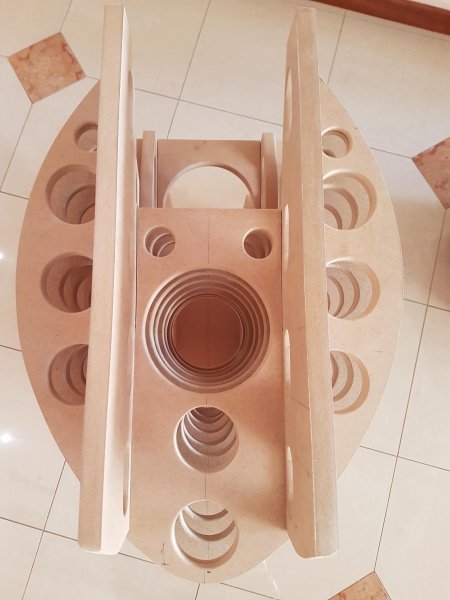

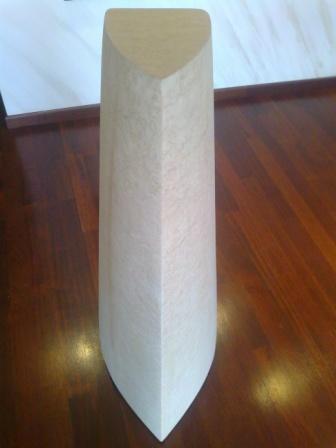

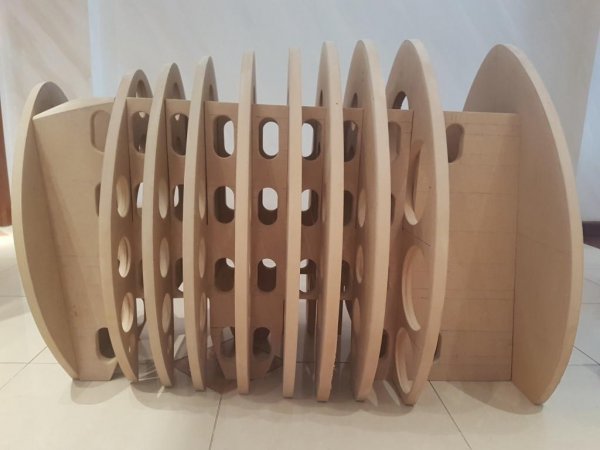

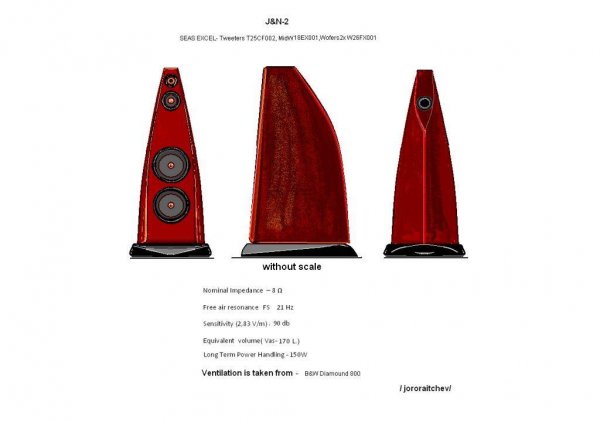

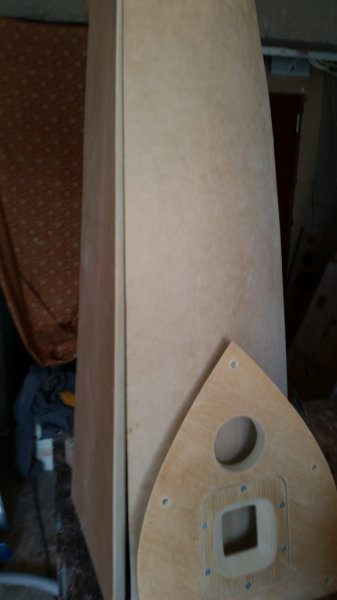

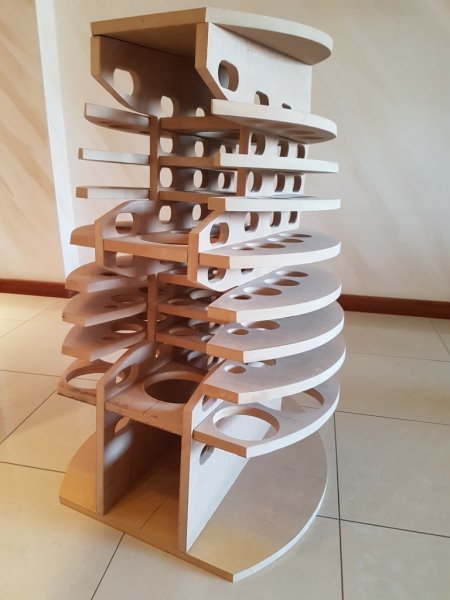

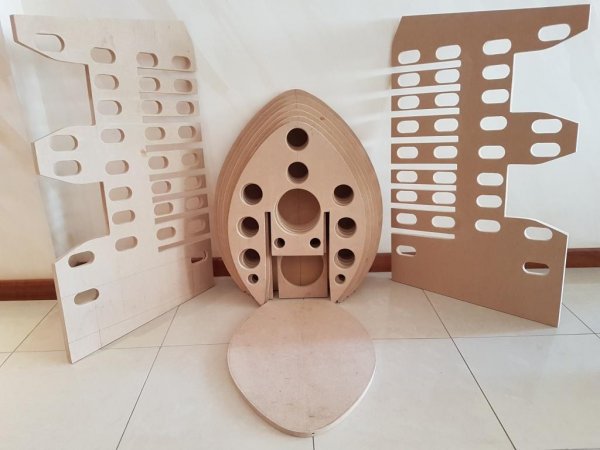

Now, I want to show you my new project:


Attachments

  • J&N-001.jpg
    50.1 KB · Views: 600
  • J&N-002-.jpg
    75.7 KB · Views: 608
  • ???? 3.jpg
    ???? 3.jpg
    998.2 KB · Views: 652
  • ???? 5-5.jpg
    ???? 5-5.jpg
    219.7 KB · Views: 635
  • ???? 6-6.jpg
    ???? 6-6.jpg
    64.5 KB · Views: 594
  • Like
Reactions: Audiophile Bill

Folsom

VIP/Donor
Oct 25, 2015
6,003
1,470
520
Eastern WA
Holy ****, you're a wild man! Do you know about No-Rez? With the use of a bandsaw it's wonderful to use, and performance very good. I've treated speakers with it and been pleased with the results being clearly better. It would be the most valuable around the mid. It also still breathes so it can be put into small spaces.


jororaitchev

Well-Known Member
Jan 5, 2017
69
21
115
Bulgaria-Sofia
^ I know similar materials / it's Europe /
Such material has nothing to do with the structure of any of my "DIY" he can complement, but not replace ventilation.


Folsom

VIP/Donor
Oct 25, 2015
6,003
1,470
520
Eastern WA
You don't use it? It just seemed like since it cuts easily it would be ideal for complicated builds to me.

I'm excited for progress pics of your new project!


ack

VIP/Donor & WBF Founding Member
May 6, 2010
6,774
1,197
580
Boston, MA
Fascinating stuff!


LL21

Well-Known Member
Dec 26, 2010
14,336
2,429
1,398
Man...i am SO embarrassed to even THINK about what my 'DIY' looks like! And we're talking screwing in fixtures and stuff!

These speakers are beautiful!!


DaveC

Industry Expert
Nov 16, 2014
3,897
2,140
495
Great job, excellent woodworking! :cool:


Folsom, I think no-rez is a beginner's product and you can easily do as good or better combining other products like MLV + denim, wool, etc. for less $. Not that no-rez is bad, it is very good but it's for people that need a simple solution and OP seems a lot more capable than needing to buy a premade product like no-rez.


FrantzM

Member Sponsor & WBF Founding Member
Apr 20, 2010
6,455
29
405
Wow!!!


Folsom

VIP/Donor
Oct 25, 2015
6,003
1,470
520
Eastern WA
Great job, excellent woodworking! :cool:


Folsom, I think no-rez is a beginner's product and you can easily do as good or better combining other products like MLV + denim, wool, etc. for less $. Not that no-rez is bad, it is very good but it's for people that need a simple solution and OP seems a lot more capable than needing to buy a premade product like no-rez.

I think I'd prefer water bordering over trying to apply recipes to speakers that have odd shapes and extremely limited space.


DaveC

Industry Expert
Nov 16, 2014
3,897
2,140
495
I think I'd prefer water bordering over trying to apply recipes to speakers that have odd shapes and extremely limited space.

It might be easier as the layers aren't laminated together.... MLV or mass loaded vinyl is the first layer of no-rez, and I'd use that, but I prefer wool felt (f11) or Ultra Touch denim insulation over the foam no-rez uses and it's much less expensive and more customizable.

  • Like
Reactions: Baffled
