Giant Custom Horn Systems - How they sound and issues with sonics

I definitely dream of one day building the ultimate system and room. I see what some of these crazy guys do with truly giant custom horn installations and they make me drool, but (like most of us) I've never had an opportunity to hear one of these crazy systems (see pics).

But I'm guessing at least a few of you have and others probably possess some theoretical engineering knowledge around the issues these giant horn systems might create, but I've never seen a thread that discusses the sonic pro's and con's of these systems.

Would love to hear some thoughts (even if it is just some pontificating on theory) regarding these types of installations. Let's discuss.



To get a accurate measurement in any technical design you need resolution .
You need a certain resolution to get the whole picture.

I know they are not accurate measurements; if they were everybody would publish them.



For what they are these measurements confirm a few things

Yes they are very sensitive

The impedance peak in the bass at about 24hertz confirms they are tuned through the rear loaded folded horn by a 11 ft horn , and the sensitivity drops off for the bass, as per a rear loaded horn, though with room gain there would still be some useful output to the bottom of acoustic instruments other than organ at about 31 hertz



Well, it says useable bass @ 30Hz. And with that room reinforcement plus bigger monoblocks why not an additional half octave.
Did the reviewer experiment with pair of 400 watts RMS into 8 Ohms each mono amps? ...The type that delivers twice into 4 Ohms.

If the lowest bass is missing just add a pair of subwoofers. Is there a law interdicting the audiophilia.
And you don't have to pay $35,000 ... I checked and you can find a pair in good to excellent condition from between roughly $4,000 and $9,000



Its Just a Total different attitude to Speakerdesign its not my thing thats all



Mechanically or acoustically it should go low with an 11 foot folded horn, when Stereophile measured the smaller Churchill, from memory did go quite low https://www.stereophile.com/content/tannoy-churchill-loudspeaker-measurements

The Churchill had a vented box...not a horn.



JA does a nearfield woofer measurement. Like holding a mike right in front of the woofer and then makes a complex sum, its not a accurate measurement , for low freq you need a anechoic chamber.

Look, you are wrong about the bass of the Westminster. It probably goes flat to 35 Hz or so and then with room reinforcement down into the upper 20s. A 3.3 meter horn will do sufficient bass.

One thing I found though is that there was an independent measurement by a private individual who estimated the sensitivity at only 93db...which would explain the less SET friendly attitude that many report. However, I have found my 93db Odeon Rigolettos work great with SET...as have other, large multi-way, conentional speakers of similar sensitivty.



Its Just a Total different attitude to Speakerdesign its not my thing thats all

We all drive different cars and speakers on different roads with various music playing.



Sorry yes your correct my bad just remember they tested it, I hadn’t realised it wasn’t horn loaded



Look, you are wrong about the bass of the Westminster. It probably goes flat to 35 Hz or so and then with room reinforcement down into the upper 20s. A 3.3 meter horn will do sufficient bass.

One thing I found though is that there was an independent measurement by a private individual who estimated the sensitivity at only 93db...which would explain the less SET friendly attitude that many report. However, I have found my 93db Odeon Rigolettos work great with SET...as have other, large multi-way, conentional speakers of similar sensitivty.

Please give me something more proof then " probably " , I know some audiophiles solve this with using thicker cables allowing more current to pass through so enhancing the bass

Give me the electrical cut off freq of that woofer , around 40 Hz probably and then explain to me how that thing can produce low freq ACCURATELY lower than that im not even talking -6 or -10 db

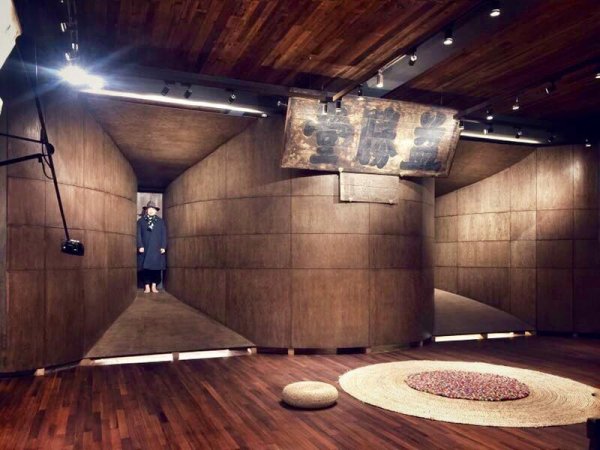

This dude in Hong Kong posted some more pics. Drool.



I bet that fellow is only 6” tall.



I bet that fellow is only 6” tall.

Well, he's definitely a HiFi giant in my eyes. Living the dream! Nothing exceeds quite like excess!!!!!



This dude in Hong Kong posted some more pics.

Where’s he posting them?

david



Where’s he posting them?

david

I saw them on Facebook. I messaged the guy to see if he would share details. I don't think it is his system though, so he might not know. Still, great to see guys doing stuff like this.



This dude in Hong Kong posted some more pics. Drool.

View attachment 39734
View attachment 39735
View attachment 39736
View attachment 39737
View attachment 39738

Unfortunately this discussion somewhat deviated from the OP question, and I’d be very curious to hear an opinion of someone, who had actually been in one of those custom designed rooms with full range horn systems, especially like the one in the picture above.
I would travel far just to hear it.
At some point, I actually contemplated doing something like this, when we were thinking about building a new house, but that never happened.



Starting to think of David’s Bionors as mini monitors now



Starting to think of David’s Bionors as mini monitors now

and last night Bonzo was asking me if asian audiophiles were mad .



For Ked



and



This dude in Hong Kong posted some more pics. Drool.

View attachment 39734
View attachment 39735
View attachment 39736
View attachment 39737
View attachment 39738

Wow, the James Bond of horns.
