Modern speakers vs Vintage speakers
- Thread starter thomask
- Start date
Group delay of the drivers, xover point 600hz and 2.3khz, steep-edged filters, this is what the phase sequence looks like. Impulse-optimized loudspeaker (3 way) to simultaneously address the drivers. With active speakers, the treble and midrange are often slowed down so that they work at the same time. The Neumann pictured does this almost perfectly.What is that the electrical phase??
Rob
Sorry Stephan using very direct expression on my last post. I just wanted to point out how frustrating those beryllium drivers on Yamaha speakers. I think we both agree that they don’t sound good for us.
All fine, don't fits my tube amplifiers and my taste. But anyone who owns these classics should read them carefully and recreate them.
Why out of curiosity? Durability like breakage from flex?
Rob
VC's should never flex. The leads to them are not the same material.
I thought some of the older compression drivers routed the VC wire through the tangential surrounds and it was a common failure point? Maybe not?
So what's your objection to aluminum?
Rob
Attachments
Last edited:
I thought some of the older compression drivers routed the VC wire through the tangential surrounds and it was a common failure point? Maybe not?
So what's your objection to aluminum?
Rob
Sure but again the leads are not the same as the VC. That is why on cones of lots of drivers you see the two dimples, it is where the leads are soldered to the VC.
VCs are not braided, they're just a solid core. That is one easy way to tell looking behind a driver.
Hello

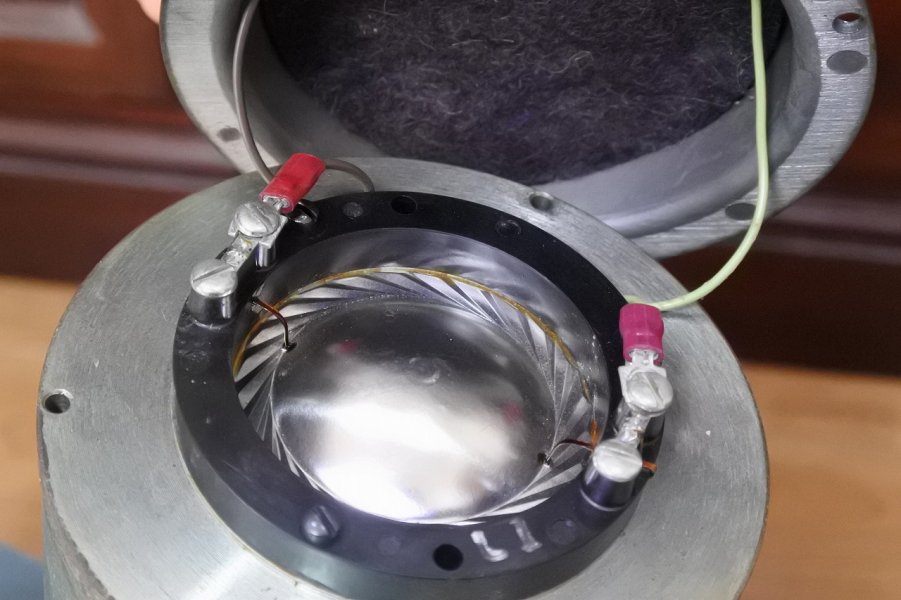

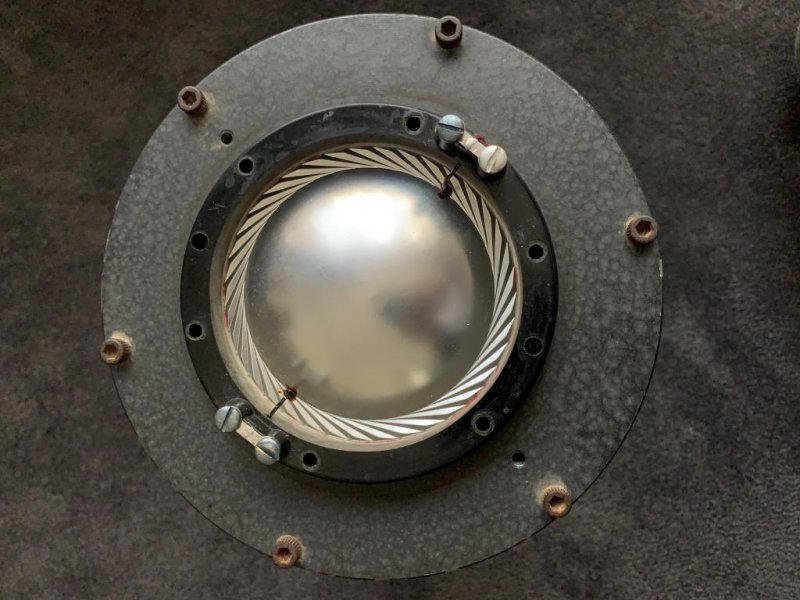

I understand that typically there are multistrand tinsel leads soldered into eyelets. Compression drivers usually use aluminum VC wire/ribbon. In the photo's I posted it's not tinsel lead but ribbon like the coil. And there were failures using a ribbon. Here is a better picture. Can't say for sure if it's VC ribbon or a copper ribbon bonded to the VC at the form.
That's why I brought up fatigue. The early Aluminum diaphragm's were life limited depending on use because of embrittlement from repeated flexing. The surrounds would literally shatter.
Compression Driver Diaphragm Longevity
Several forum members have put forward the question of compression driver diaphragm longevity. Here is some information. Context - 2410/2420/2421/2425/2426/2440/2441/2445/LE175/LE85/375/376 The power and efficiency ratings of these compression drivers can be found on the JBL Pro website...
www.audioheritage.org
Rob
Attachments
Last edited:

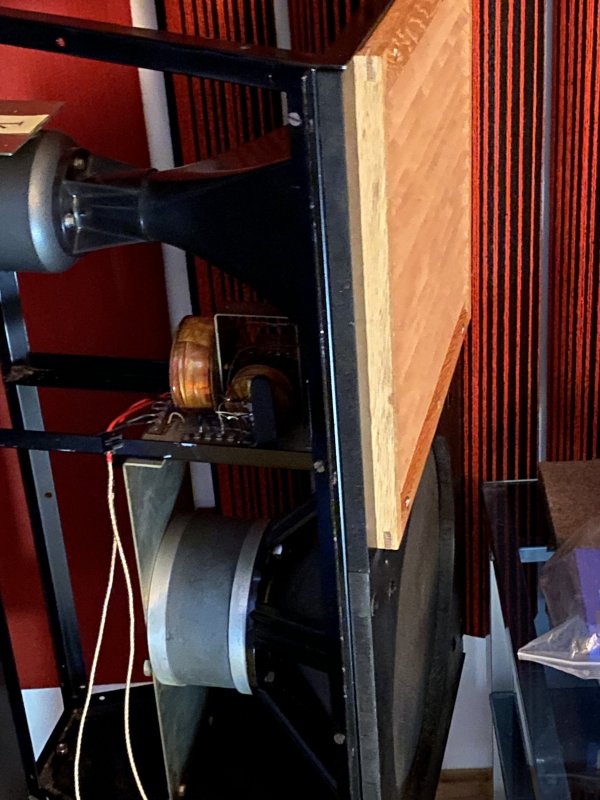

Heard these Eurodyn which were without the baffle. the baffle is kept at the side as it does not fit this room.

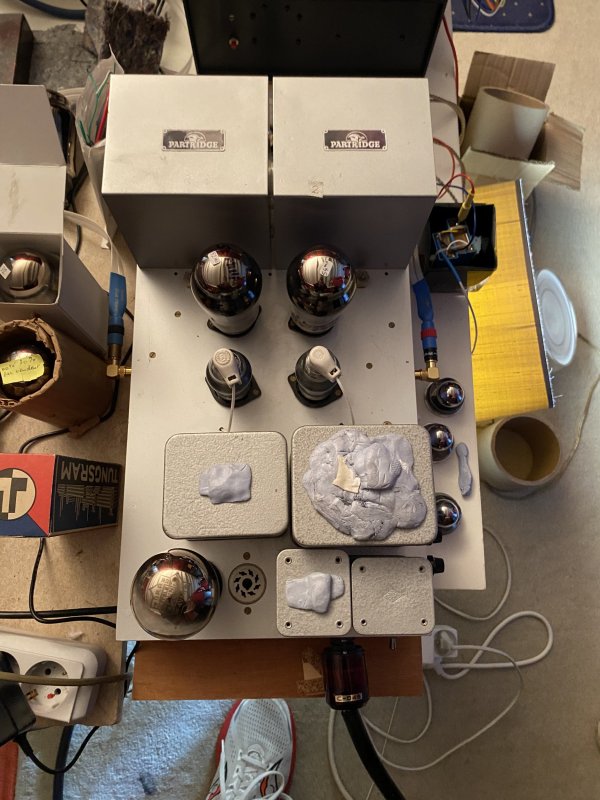

they were being driven Great by these partridge transformers AD1 amp with all Telefunken originals for output drivers and rectifier.
it is kept up on a stool in front of the “Altec”
this guy sold off 4 pairs of the Eurodyn, this Ian last. The tonality is very similar to the bionor and Euronor even without the Kondo. Only digital set up unfortunately.
the metal horn is replaced by a wooden one
they were being driven Great by these partridge transformers AD1 amp with all Telefunken originals for output drivers and rectifier.
it is kept up on a stool in front of the “Altec”
this guy sold off 4 pairs of the Eurodyn, this Ian last. The tonality is very similar to the bionor and Euronor even without the Kondo. Only digital set up unfortunately.
the metal horn is replaced by a wooden one
Last edited:
The madness Continues
This is like looking at an suped up EFI turbo charged model T with disc brakes ..!
Audio , you gotta love it ..
This is like looking at an suped up EFI turbo charged model T with disc brakes ..!
Audio , you gotta love it ..

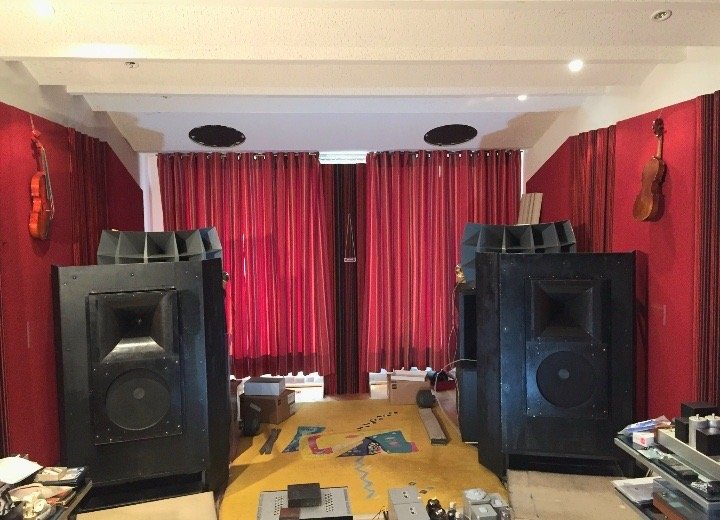

no that thing in the ceiling is not a sub, it doesn’t do anything.

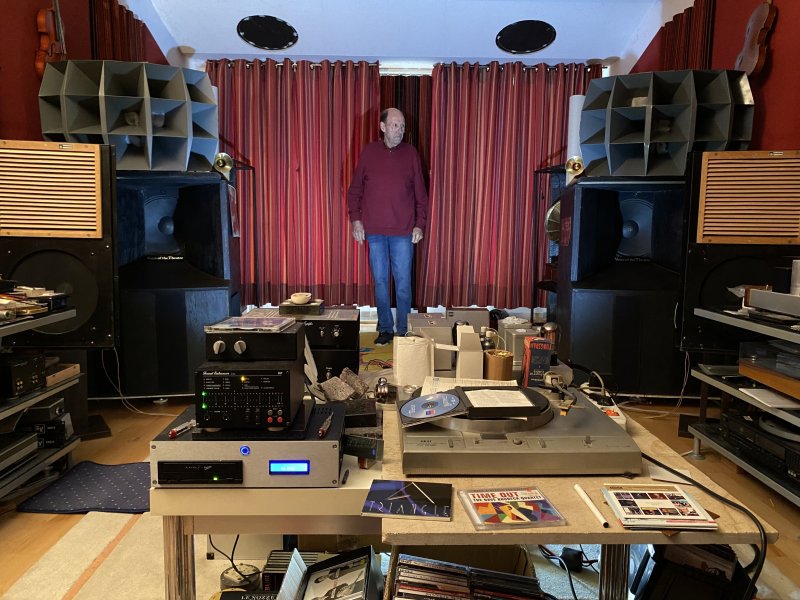

he is 84, and won’t be setting up tables now.
i did lift those klangfilm speakers and put them as directed and came back to listen to them the next day.
regarding speakers in the ceiling, my old Altec report shows 4 woofers each side in the wall. But that didn’t work well. Hiraga told me the best system he ever heard was that of Kaneda in Japan which is an Onken Altec mix quadraamped with 4 woofers for each channel in the ceiling and stone horns and stuff.

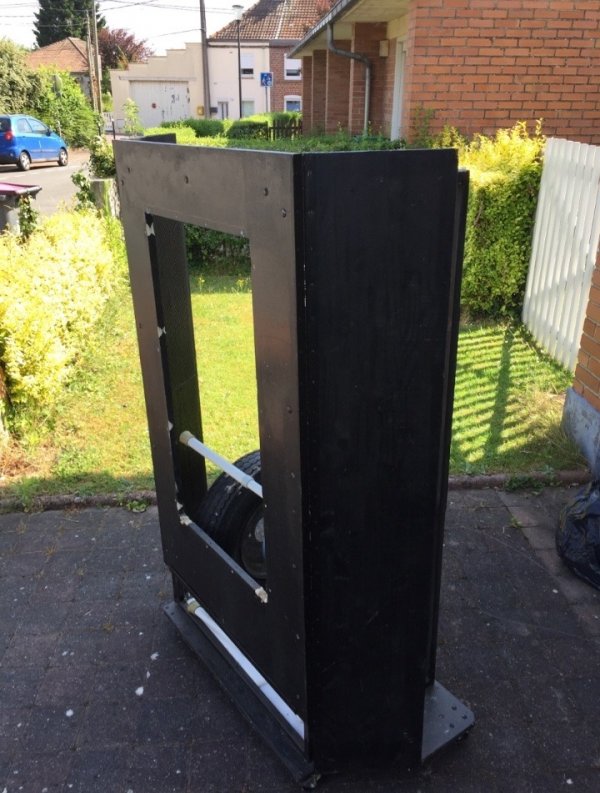

Eurodyn baffles have many shapes
Just call Shahinian - (631) 736-0033 - they'll explain the connections (not obvious). I've never seen a manual for their speakers (which is, of course, odd)!
