You prefer one look over the other? I prefer the landscape.

I prefer the landscape as well.
I just wish that the wires would connect at the back (instead of on top) for a cleaner look.



[Audiophile Bill]

I prefer the landscape as well.
I just wish that the wires would connect at the back (instead of on top) for a cleaner look.

I understand - one advantage of it is proximity to wall for rack. Some rca or power cables need 30cm+ room before the wall. That said I can’t use a Bocch IEC due to size.



[christoph]

I understand - one advantage of it is proximity to wall for rack. Some rca or power cables need 30cm+ room before the wall. That said I can’t use a Bocch IEC due to size.

But then again, you don't want to have such a boa growing out of the top plate either, right?
If landscape, then I would like to have the sockets on the back.
But I think I prefer portrait anyways



[Audiophile Bill]

But then again, you don't want to have such a boa growing out of the top plate either, right?
If landscape, then I would like to have the sockets on the back.
But I think I prefer portrait anyways

For me the height issue of the “boa” hasn’t been a problem. It has always been the rear clearance.



[Ron Resnick]

What else do you have over 100 watts/

MastersoundD PF100



[christensenleif@msn.com]

DIY borderpatrol 300B dual chassis mono(LV 300B) on all out passive X/O TAD 2002 +4003 in JMLC/2xJBL2220B in FLH
below 4m one fold hornsub with 18Sound 21LW1400 and Tower of Power Holton 800 amps active analog LP@75Hz



[morricab]

DIY borderpatrol 300B dual chassis mono(LV 300B) on all out passive X/O TAD 2002 +4003 in JMLC/2xJBL2220B in FLH
below 4m one fold hornsub with 18Sound 21LW1400 and Tower of Power Holton 800 amps active analog LP@75Hz

Can you post a picture...sounds interesting



[christensenleif@msn.com]

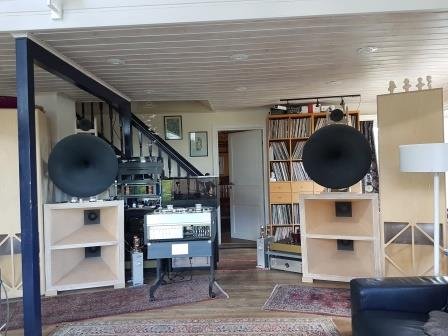

had to compress pic...here I was testing Nagra VPA for potensial midbassduty, but my 300Bs were much better , probably due to proper stiff psu compared to the peanut psu in Nagra



[Tango]

View attachment 48804

had to compress pic...here I was testing Nagra VPA for potensial midbassduty, but my 300Bs were much better , probably due to proper stiff psu compared to the peanut psu in Nagra

Hi Leif,

Is that your turntable all the way up there? You must be really tall.



I like your simplicity.

Kind regards,
Tang



[morricab]

View attachment 48804

had to compress pic...here I was testing Nagra VPA for potensial midbassduty, but my 300Bs were much better , probably due to proper stiff psu compared to the peanut psu in Nagra

How do you deal with the long time delay from your 4m long subwoofer? do you use a digital delay?



[christensenleif@msn.com]

hi T
yes it is an EMT 938, just sold
this was an emergency placement
I made 2 staircase steps removable and stashed the lch 300B under the stairs with its psu and freed space to rearrange left rack
now, on same level with Basis Ovation/Airtangent reference to the left, is space for upcoming Garrardzilla project
301 is with Ray at Classic turntables in Uk for refurb and new cnc chassis....next is 13,5 kg bronze platter and new bearing from Stefano in Vicenza



[christensenleif@msn.com]

How do you deal with the long time delay from your 4m long subwoofer? do you use a digital delay?

It´s 14msec and under 75Hz is not detectable unless you put your nose on the joint between the FLHs and the sub and have one ear in each...



[christensenleif@msn.com]

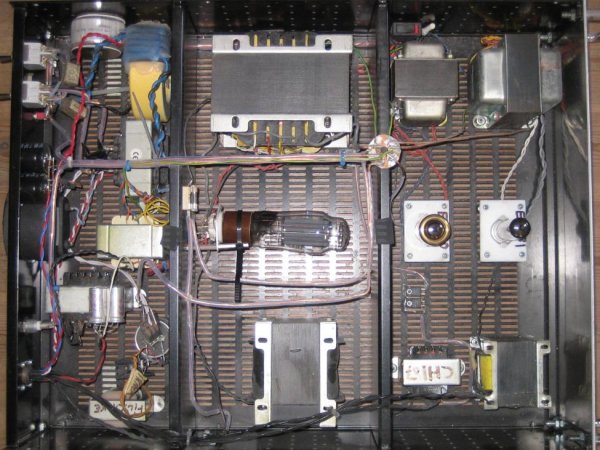

Hørning OPT 6c45 IT coupled 5 parts in signal path, rest is power
STAX terminals



[christensenleif@msn.com]

300B PSU




from left to right, ac on top dc in bottom of pic.....filament incl chokes---300B HV--- bias and driver HV



[christensenleif@msn.com]

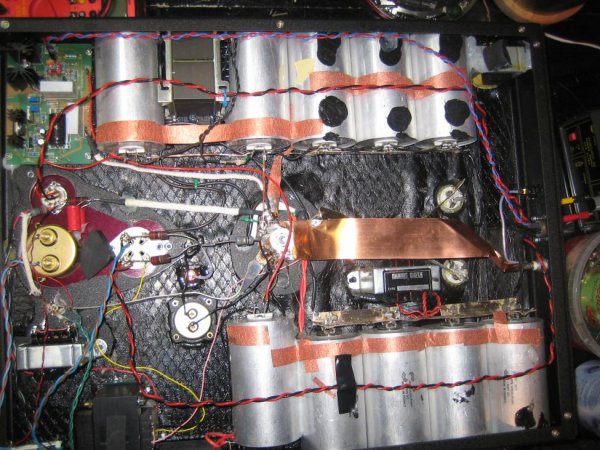

300B output chassis



upper left corner Vacuum State SuperReg for 6c45 HV...to right driver smoothing section incl second choke/ center right bias/ bottom right 300B smoothing incl 2nd choke/ bottom left Borderpatrol cryoed IT and above S&B gridchoke
looks a little messy but noise is 160µVAC on output



[morricab]

View attachment 48808

Hørning OPT 6c45 IT coupled 5 parts in signal path, rest is power
STAX terminals

Nice. My Aries Cerat Genus (didn't build it myself, alas) is also a very simple circuit path: E280F in triode to interstage transformer to 813 in triode to OPT. The rest is power supply...



[christensenleif@msn.com]

all is DIY except Day Sequerra and turntable and Studer A727 and A80s



[Legolas]

Nice. My Aries Cerat Genus (didn't build it myself, alas) is also a very simple circuit path: E280F in triode to interstage transformer to 813 in triode to OPT. The rest is power supply...

Simple, but sounds like the voice from GOD.



[wh01sjongalt]

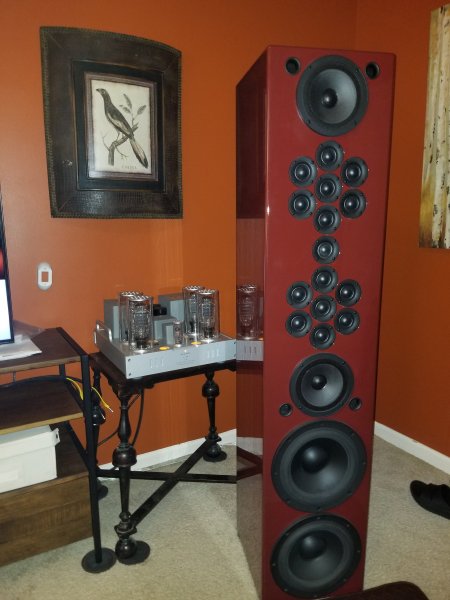

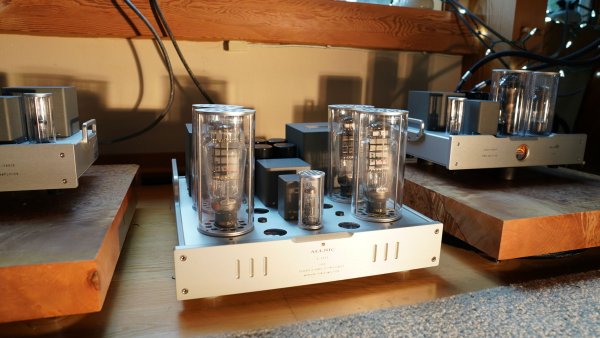

Allnic A6000 Quad Parallel SET 300bxls 60wpc Monoblocks

Tekton Design Encores 96db/4ohm



[the sound of Tao]

Both the Allnics and the Tektons look like fabulous beasts together... enjoy in good health.
