Single Driver Thoughts?

spiritofmusic

Well-Known Member
Jun 13, 2013
13,854
4,523
963
E. England
Actually not at all well treated and the ceiling is sloped from 8 up to 12 foot also 14 x 16.5 if that really makes a diff. The room is well treated also not an issue at all cube would be 14x14x14.
It was just a comment that those dims aren't far off a cube, but point taken.
Maybe it's time for you to reveal why you're tempted by the single driver concept.


spiritofmusic

Well-Known Member
Jun 13, 2013
13,854
4,523
963
E. England
Well, I can't speak for Cube etc, but the Zu ethos is pretty simple and purist. Full range treated 10.3" Eminence driver covering the range of human voice (35Hz-11kHz) w no intervening energy sapping crossover, simple high pass filter (single Duelund cap and resistor) to Radian tweeter that extends up to roll off just after 20k. Genuine 101dB/1m efficiency, steady 8 or 16 Ohms impedance.

Feb 14, 2022
66
21
10
62
Well, I can't speak for Cube etc, but the Zu ethos is pretty simple and purist. Full range treated 10.3" Eminence driver covering the range of human voice (35Hz-11kHz) w no intervening energy sapping crossover, simple high pass filter (single Duelund cap and resistor) to Radian tweeter that extends up to roll off just after 20k. Genuine 101dB/1m efficiency, steady 8 or 16 Ohms impedance.
Thank you! So you are quite smitten with your Zu Definitions?


spiritofmusic

Well-Known Member
Jun 13, 2013
13,854
4,523
963
E. England
They work in many ways, critically nailing tone density, presence and shove. Yes, they have some shortcomings, but I feel what they excel at makes them hugely addictive.


Don Reid

Member
Nov 14, 2020
37
38
23
72
Instead of single driver speakers I find great merit in using very wide range speakers with bass and high treble augmentation. My fully horn loaded tri-amplified DIY speakers use one driver, an AER BD3 in a Oris 150 horn to cover the range from 200 Hz to 8 kHz. The results are good.

  • Like
Reactions: Cellcbern

Atmasphere

Industry Expert
May 4, 2010
1,658
977
535
St. Paul, MN
www.atma-sphere.com
PHY makes two drivers of interest. Neither uses whizzer cones, which often tend to have breakups. So one is an 8" unit with a sandcast basket and the other is a newer design 6". The 6" unit is very light and has nice smooth high frequency response. Its limited in what it can do down low of course, but you can get it to go below 70Hz so its possible to blend it with a sub well enough. I've set the 6" up in sealed boxes and also a rear loaded quarter wave horn and had them work quite well. Its about 96dB and 15 Ohms. The 8" is more like 99dB and is also 16 Ohms. The ones I've seen seem suited for open baffle or a 1/4 wave rear loaded horn.

I recommend having some rear firing tweeters with any full range driver to supplement the off-axis tonality a bit. The trick here is to make sure that the tweeter's reflected sound arrives enough later than the ear can use it for echo location. If you angle the tweeter(s) up slightly (perhaps at 45 degrees) this will allow the speaker to be a little closer to the wall behind it.

Voxitive has some nice drivers too. They have a bit of resonance (peakiness anyway) in the 3KHz range but if you have an amplifier that behaves as a voltage source they are perfectly smooth. Although expensive, their field coil units are where the action is.

I get the attraction to a crossoverless full range design. But IME they only get close; you'll want to add a sub and the ancillary tweeters (they do really help and don't impose a crossover into the full range driver circuit). But if you also cross over the driver to keep out of band bass excursion out, it will be more transparent. And then the crossover imposes its cost...

  • Like
Reactions: RCanelas

Cellcbern

VIP/Donor
Jul 31, 2015
765
369
385
69
Washington, DC
Instead of single driver speakers I find great merit in using very wide range speakers with bass and high treble augmentation. My fully horn loaded tri-amplified DIY speakers use one driver, an AER BD3 in a Oris 150 horn to cover the range from 200 Hz to 8 kHz. The results are good.

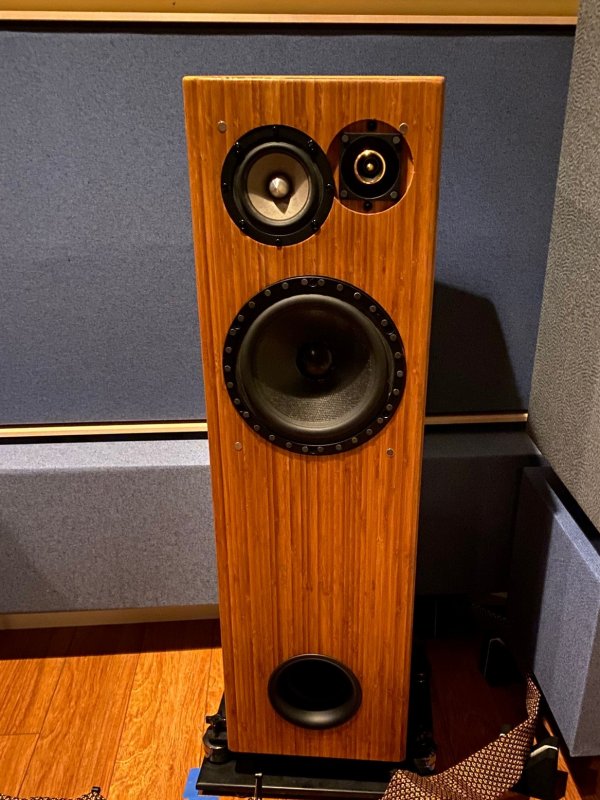

I prefer the sound of augmented wide band speakers to their single driver counterparts. My custom Bache Metro 001 for example has Eton's premium Symphony woofer (8") covering the range below 500 hz, a 4" Tang Band wide band driver covering 500 hz - 9000 hz, and the rare (out of production) Japanese made Fostex FT-96 EX-2 horn loaded tweeter covering the range 9000 hz and above. With no crossover in the mid range you get the coherence and "all of a piece" sound of the best single driver speakers without sacrificing bass response and treble extension.



Attachments

  • IMG_2365.jpg
    540.3 KB · Views: 3
Last edited:
  • Like
Reactions: Atmasphere

Don Reid

Member
Nov 14, 2020
37
38
23
72
the only good single driver I have heard (having heard Zus and Cube, though Zu has an active bass so not exactly single driver), is Pnoe with AER BD4 or 5, only in very specific configurations. And it is just too expensive.
Just yesterday I received an e-mail from Filip Keller of AER in response to an inquiry I had sent asking the price of a pair AER BD4 drivers. His answer was 48,000 Euros for the pair of eight inch drivers.


Kingrex

Well-Known Member
Feb 4, 2019
1,232
846
200
What about Decware?


Solypsa

Well-Known Member
Jun 7, 2017
1,132
753
220
Seattle
www.solypsa.com
What about Decware?
Of the Decware offerings the Lii speaker they market ( not made by Decware ) is one I would like to hear. Promising on paper...wonder about reality.

  • Like
Reactions: matakana

Kingrex

Well-Known Member
Feb 4, 2019
1,232
846
200
I like my speakers. But I do remember someone telling me to direct wire my Voxative driver to the amp. No crossover. I was shocked at the most beautiful violin I had heard from any speaker. Then the piano or a singer or something started and it all went to pieces.

Ralph has a good point about adding a subwoofer and tweeters.


DasguteOhr

Well-Known Member
Sep 26, 2013
935
891
355
Germany
Coral 10 beta in backloaded horn, i ve heard some of it over years.
for me best to get a lot fun listen to music
Amazing good mesurements 45hz-16 khz only +-1.5db

Last edited:

matakana

Well-Known Member
Aug 26, 2020
296
141
50
59
UK
A friend of mine has some Lii Audio Origin S-10 single driver speakers and he used to own Cube Audio Nenuphars.
And such a good price too @$4000 ! Very interesting as I was quite keen on the Cubes.
Can you tell is more about the Lii, have you heard them yourself Audio_karma.


L3RD

Member
May 1, 2022
96
17
8
64
Single driver guys are more married to the theory rather than what they hear.
I think your theory is a flop. I purchased single drivers with the guarantee that I could return them. I was positive that the comments were not from real customers, until I broke them in and heard them. None of this has anything to do with theories, just music.
