Taiko Audio Daiza platforms.

Wrm57

Well-Known Member
Oct 30, 2012
21
9
233
Hi Taiko Audio (Emile?) ,

Your graphs help me appreciate the complexity of the stacked solution. In theory, then, would I be better off using the Daiza as a shelf without the feet atop the Minus-K, and using solid footers (like massive brass cones bolted into the plinth) rather than Stillpoints Ultra 5 on the (150 lb) turntable? This would eliminate two passive devices in the potentially node-amplifying chain, no?

While you're here, perhaps you can answer my original question about the Daiza: Will the location of the footers on the 483x600 mm version allow it to sit properly on the 20x18-inch top plate of the Minus-K? Ideally, I'd want a little extra room to shift it around for balance on the Minus-K.

Thanks.

Last edited:

Mike Lavigne

Member Sponsor & WBF Founding Member
Apr 25, 2010
9,164
3,248
820
Mike, the chap who has Rockport Arrakis w 6 REL subs, runs his Kodo The Beat on a Minus K. I believe I'm right in thinking The Beat has Stillpoints Ultra 5s built-in to the design, and so Ultra 5s and Minus K being used together.

i think that this is a similar situation to Peter A. and his SME 30 rubber band suspension combined with the Vibraplane. no surprise removing the Vibraplane cleans things up. the single engineered in device likely works better alone.

my guess is that Arnie's system with the Beat with Stillpoints and on a Minus K (assuming the Stillpoints are still installed) is not ideal as it is. but a better way to put it would be that the success of combining passive devices is hard to predict. and the more aggressive the approach of the two passive devices, the greater the unpredictability. in Arnie's system with all that low frequency energy maybe the net result of added isolation is positive, even though in other systems maybe it might not be the same.

combining benign passive devices, such as stacking different types of wood for tuning, has less dire consequences.

your Stacore+ devices combine different passive approaches but are engineered to work that way. that is how you do it.

Last edited:
  • Like
Reactions: Taiko Audio

Taiko Audio

Industry Expert
Feb 10, 2017
1,503
2,143
320
The Netherlands
taikoaudio.com
Hi Taiko Audio (Emile?) ,

Your graphs help me appreciate the complexity of the stacked solution. In theory, then, would I be better off using the Daiza as a shelf without the feet atop the Minus-K, and using solid footers (like massive brass cones bolted into the plinth) rather than Stillpoints Ultra 5 on the (150 lb) turntable? This would eliminate two passive devices in the potentially node-amplifying chain, no?

While you're here, perhaps you can answer my original question about the Daiza: Will the location of the footers on the 483x600 mm version allow it to sit properly on the 20x18-inch top plate of the Minus-K? Ideally, I'd want a little extra room to shift it around for balance on the Minus-K.

Thanks.

I would still use the supplied Daiza footers, the only scenario where you would forego of using the footers with it would be on top of an active platform to avoid breaking the feedback loop.

So yes Minus-K -> Daiza including its footers -> brass cones -> turntable would give you reliable results.

On 20x18" it would just about fit but leaves no room for manoeuvring, I would suggest a custom cut size for that which we still don't charge extra for, but we cannot take custom cut sizes back should you not like it.

Emile.


Wrm57

Well-Known Member
Oct 30, 2012
21
9
233
I would still use the supplied Daiza footers, the only scenario where you would forego of using the footers with it would be on top of an active platform to avoid breaking the feedback loop.

So yes Minus-K -> Daiza including its footers -> brass cones -> turntable would give you reliable results.

On 20x18" it would just about fit but leaves no room for manoeuvring, I would suggest a custom cut size for that which we still don't charge extra for, but we cannot take custom cut sizes back should you not like it.

Excellent info, Emile. I'll reach out by email to get this going. Thanks!

Bill


Forte

Well-Known Member
Feb 17, 2017
22
7
68
I didn't see in any post but what is the optimum/maximum weight load of the daiza platforms?
1 platform for up to 70 pounds?


Rhapsody

VIP/Donor
Jan 16, 2013
1,433
1,598
665
NYC
I didn't see in any post but what is the optimum/maximum weight load of the daiza platforms?
1 platform for up to 70 pounds?

I have Soulution 225lb 700 monos on the Diaza. Also had my Pilium 275lb Achilles stereo amp on a Diaza. Also several other 200lb pieces on Diazas.


Taiko Audio

Industry Expert
Feb 10, 2017
1,503
2,143
320
The Netherlands
taikoaudio.com
I didn't see in any post but what is the optimum/maximum weight load of the daiza platforms?
1 platform for up to 70 pounds?

No practical limit, a 12 ton hydralic press does manage to induce a 0.5mm deformation.

  • Like
Reactions: wil and Forte

Mike Lavigne

Member Sponsor & WBF Founding Member
Apr 25, 2010
9,164
3,248
820

Taiko Audio

Industry Expert
Feb 10, 2017
1,503
2,143
320
The Netherlands
taikoaudio.com
how about the footers both top and bottom?

That was applied on the footers as the weakest link. The 0.5mm is reduced height after application as the rounding at the underside of the footer is flattened. So that 12 ton pressure actually exceeds the 250 tonnes / cm2 which is used to form the material. I would expect stronger deformation when that kind of pressure is applied on the horizontal plane but that would not be a likely scenario to happen.


Mike Lavigne

Member Sponsor & WBF Founding Member
Apr 25, 2010
9,164
3,248
820
That was applied on the footers as the weakest link. The 0.5mm is reduced height after application as the rounding at the underside of the footer is flattened. So that 12 ton pressure actually exceeds the 250 tonnes / cm2 which is used to form the material. I would expect stronger deformation when that kind of pressure is applied on the horizontal plane but that would not be a likely scenario to happen.

i guess that means no hifi relevance to a weight limit.;)


Taiko Audio

Industry Expert
Feb 10, 2017
1,503
2,143
320
The Netherlands
taikoaudio.com

Wrm57

Well-Known Member
Oct 30, 2012
21
9
233
Thought I'd update the forum on my Daiza progress. For a couple weeks now I've been listening to one between a Brinkmann Oasis and an Adona multi-element shelf, and I'm very pleased with the sound: detailed without being harsh, balanced top to bottom, with improved resolution, clarity and space compared to placement directly on the Adona shelf. So now I've ordered a larger, custom cut to place between my coming Artisan Fidelity SP10R and Minus-K.

Many thanks to Emile for all the help, both before and after the purchase. Superb customer service.


wil

Well-Known Member
Jul 22, 2015
367
180
128

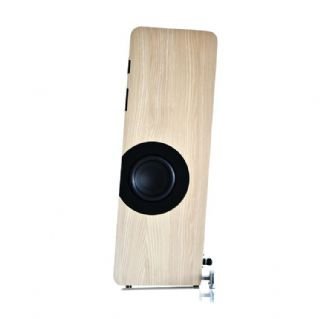

What about use of the Daiza's as Speaker Platforms? I was curious, in particular, how they would perform with a design such as Boenickes Swing Base, which suspends the rear of the speaker on cables and the front on a ball bearing. The concept in their words:

Our SwingBase® (patent pending) allows your components and speakers to move in the horizontal plane with as little friction as possible while offering extremely simple height adjustment. There are many other products on the market, most of them using “isolating” ball bearings (or springs). Since a ball rests on its adjacent surface on a theoretically infinitely small area, either the ball or the surface it sits on inevitably deforms to a certain degree, even under little weight. That clearly compromises the construction‘s effectiveness. Bear in mind: Horizontal friction must be as low as possible!
Our SwingBase® is totally different. Your components will be suspended in free air, held by thin and flexible steel-ropes, pre- senting virtually zero resistance to relative movements, even under heavy loads up to 280 kg*.


Is this method complimentary to what the Daiaz is doing, or would they be working at cross purposes? boenicke-audio-w8-finish-ash-finish-model-se-[3]-10994-p[ekm]320x319[ekm].jpg Unknown.jpeg


Taiko Audio

Industry Expert
Feb 10, 2017
1,503
2,143
320
The Netherlands
taikoaudio.com
What about use of the Daiza's as Speaker Platforms? I was curious, in particular, how they would perform with a design such as Boenickes Swing Base, which suspends the rear of the speaker on cables and the front on a ball bearing. The concept in their words:

Is this method complimentary to what the Daiaz is doing, or would they be working at cross purposes?

It will absorb some cup to floor ringing which might be positive. But Boenicke is definitely in the "including material resonant behaviour into the speaker voicing" camp so it may alter that voicing. I generally do not recommend using Daizas for that type of product.
