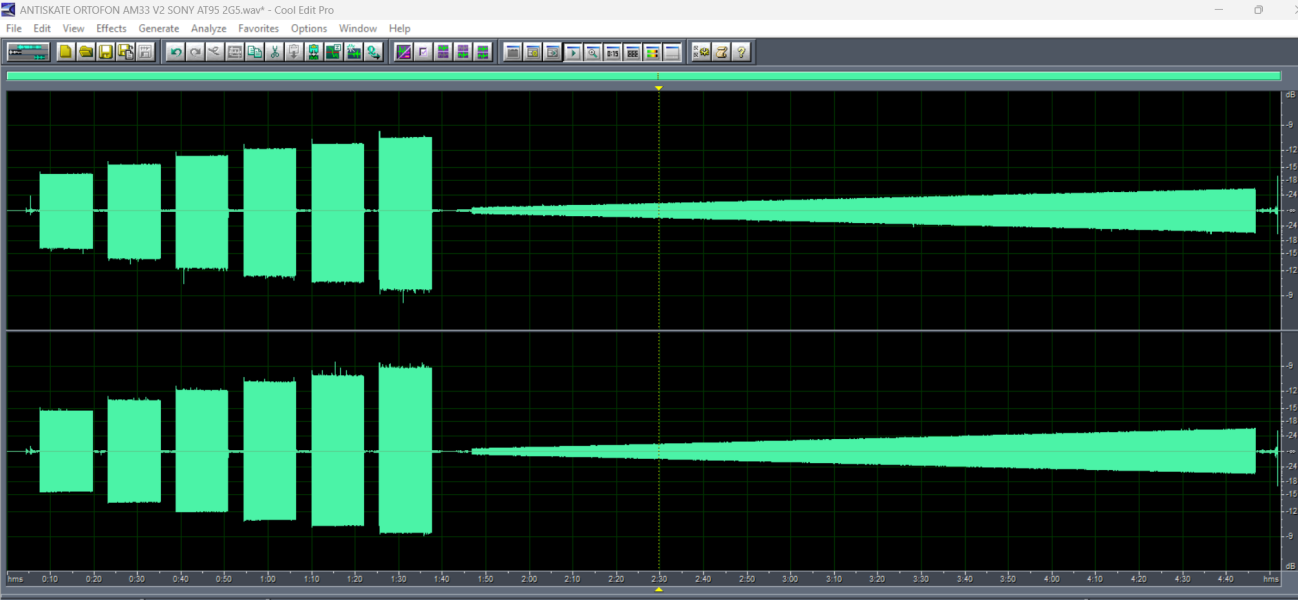

I wonder why the AM antiskate tracks are so low in level. 4.8db lower than the lowest antiskate track on the Ortofon record ( 50um).
certainly no match to track AM33 V2 antiskate track... Maybe there is is an objective I do not know of



[tony22]

the track is too shot to work well with AM...

What program do you use for this track?



[Balle Clorin]

Record in CoolEditPro(adobe audition) and Analyse the 440hz part. /or Parks audio Puffin or just look at the mV values in the top if the AM plot and convert to db, or use a mv meter pun your output of amp etc

Or VA Visual analyser or analyse recording in REW/ import audio

Visual Analyser 25.30

A powerful software implementing a Spectrum Analyzer, Oscilloscope, Frequency meter, Distorsiometer, Volt meter and more... plus complete D/A conversion, ZRLC, Impedance meter

www.sillanumsoft.org



[tony22]

Record in CoolEditPro

Thanks. I should be able to do the same in Audacity.



[Balle Clorin]

I do not trust anything Audacity does…



[tony22]

I do not trust anything Audacity does…

It sounds like there’s a story tied to that…

Ah, I see you added VA. I have that and use it, yes. And REW!



[Balle Clorin]

AT95E with 5 degree VTA shim


Without any shim. Azimuth optimised in both cases



[Balle Clorin]

It sounds like there’s a story tied to that…

Ah, I see you added VA. I have that and use it, yes. And REW!

You still need to edit away the talking..I guess that can be done by Audacity…possibly with no harm?



[tony22]

You still need to edit away the talking..I guess that can be done by Audacity…possibly with no harm?

Easy enough to do.



[mtemur]

I do not trust anything Audacity does…

I use Izotope RX



[Balle Clorin]

Some AM33 V2 results for different set ups/TT ,measured as is. Not tuned with AM



AM Pink noise is not as detailed as a Clearaudio CA TRA-1007 sweep, but tells the deviation correctly.



The PN track on AM33V2 reveals arm resonances. Please post yours!
1.record an import to REW



[edwyun]

Why disregard the 60hz,? it is part of the 60:7000hz IMD test signal…. And supposed to be there ,right?

Correct; though I was having 60Hz ground hum issues so it was additive on the plot. The ground hum shows up at times, given that it is an old house.



[edwyun]

So have people stayed with AMv1 or gone to AMv2? Probably, an easier jump going from v1 to v2 at the upgrade price than paying full price for v2.



[edwyun]

I wonder why the AM antiskate tracks are so low in level. 4.8db lower than the lowest antiskate track on the Ortofon record ( 50um).
certainly no match to track AM33 V2 antiskate track... Maybe there is is an objective I do not know of

The A/S track in AM is an amplitude sweep from low to high.



[Balle Clorin]

Yes and the highest level is 4.8db lower than the lowest level if any sensible anti skate track.How can this track be useful at so low levels..? No cartridge will ever mistrack on the AM track . It is like measuring a fever with a thermometer that reads no more than 50F..



[Balle Clorin]

So have people stayed with AMv1 or gone to AMv2? Probably, an easier jump going from v1 to v2 at the upgrade price than paying full price for v2.

I have both V1 and V2 . The V2 records were terribly warped and useless so I returned them , I was given some new cheery picked ones as replacement and they are good.
V1 software is useful with other test records too, V2 not so much. For Azimuth I do not use the AM records since their crosstalk is mediocre, other record like Ortofon and Ultimate Test record are better, but can only be used by V1 software. You can download both V1 and V2 software and choose what to use. The only thing V2 provides in addition to V1 is the Zenith track and a much better pink noise track that also reveals arm irregularities.
For both V1 and V2:The VTF track do not really give me any extra information, and the anti skating track is too low in level do be useful, the arm-cartridge resonance test for lateral is OK , but the vertical resonance track does not give any useful respons- I tried 4 cartridges and 3 TT. Vertical resonance I need to do with other records and software.

What AM gives me is a convenient way to check the setup, but I can do everything AM does except Zenith by using Ortofon+ Ultimate test record+ HifiNews record and my PC and REW or another software for recording.



[edwyun]

Yes and the highest level is 4.8db lower than the lowest level if any sensible anti skate track.How can this track be useful at so low levels..? No cartridge will ever mistrack on the AM track . It is like measuring a fever with a thermometer that reads no more than 50F..

Not sure the AM track is to make it mistrack; rather to measure resonance over time.



[edwyun]

I have both V1 and V2 . The V2 records were terribly warped and useless so I returned them , I was given some new cheery picked ones as replacement and they are good.
V1 software is useful with other test records too, V2 not so much. For Azimuth I do not use the AM records since their crosstalk is mediocre, other record like Ortofon and Ultimate Test record are better, but can only be used by V1 software. You can download both V1 and V2 software and choose what to use. The only thing V2 provides in addition to V1 is the Zenith track and a much better pink noise track that also reveals arm irregularities.
For both V1 and V2:The VTF track do not really give me any extra information, and the anti skating track is too low in level do be useful, the arm-cartridge resonance test for lateral is OK , but the vertical resonance track does not give any useful respons- I tried 4 cartridges and 3 TT. Vertical resonance I need to do with other records and software.

What AM gives me is a convenient way to check the setup, but I can do everything AM does except Zenith by using Ortofon+ Ultimate test record+ HifiNews record and my PC and REW or another software for recording.

I have V1 and V2 but have stayed with using V2 for now. I didn't have issues with warping on my V1 and V2 LPs.

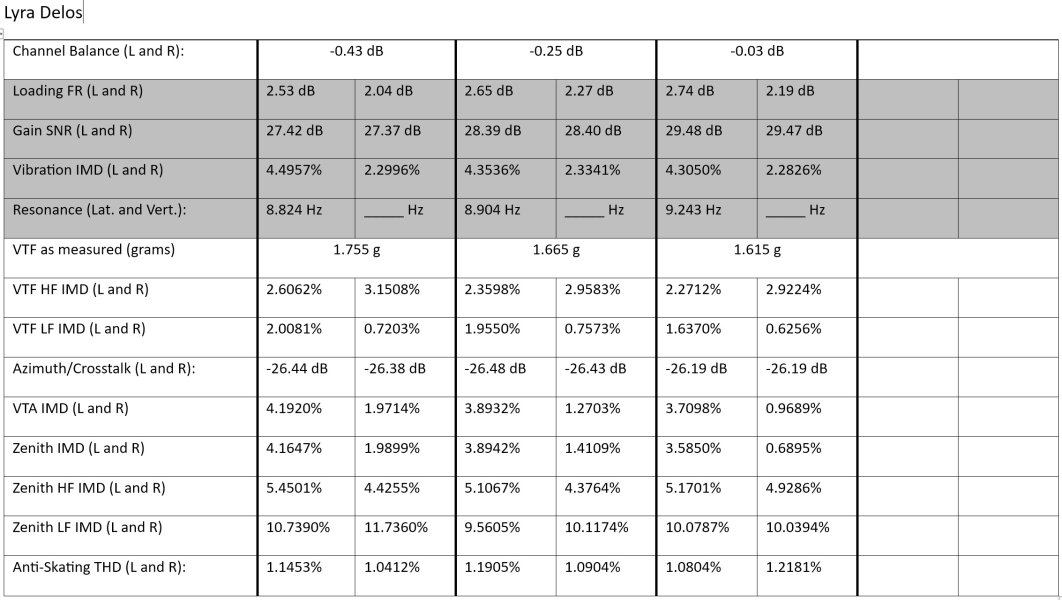

Some results using V2:



[Balle Clorin]

So this is same cartridge only different VTF, ? Cartridge? Arm ? TT?



[Balle Clorin]

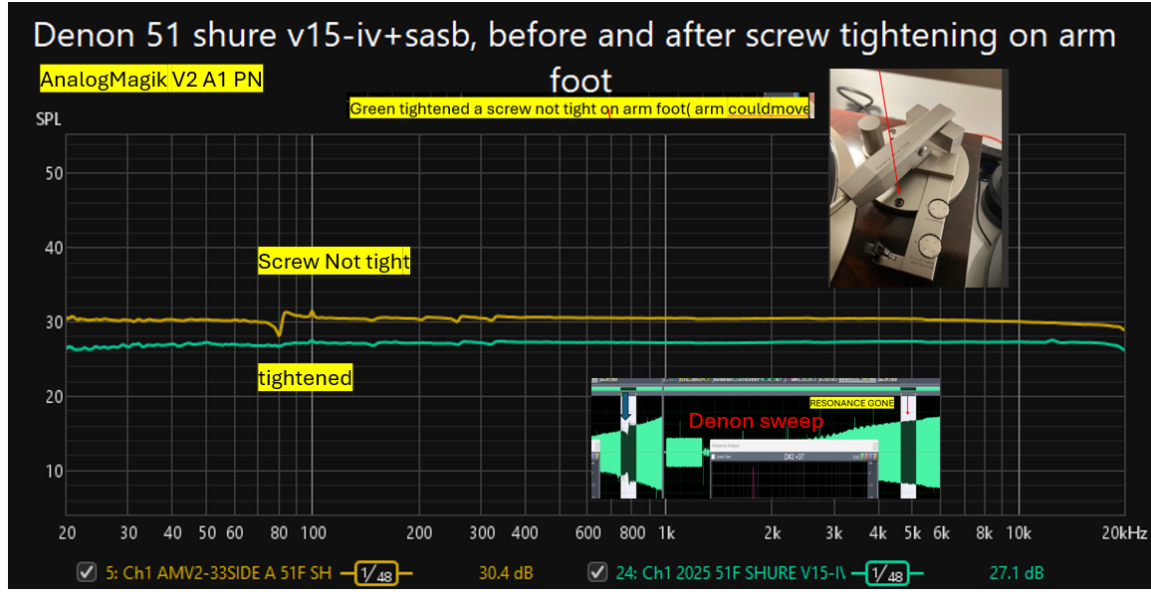

Remember the arm resonance at 82Hz revealed by AnalogMagik V2 pink noise in post 611?
Well I got rid of it, the cause was an un-tight screw!!! I notice by accident as I adjusted the VTF.. sometimes luck helps..
The resonance is not revealed in other pink noise and sweep tracks,except Denon XG-700x 5-500Hz slow sweep.

I was so unhappy with the 82Hz bug that I considered getting another turntable, now thanks to AnalogMagik I solved the problem. The Denon 51F stays.
